CNC Tool grinding machine WALTER Helitronic Basic
AB-2510-15
Le Jasmin, Saint-Genix-les-Villages, France

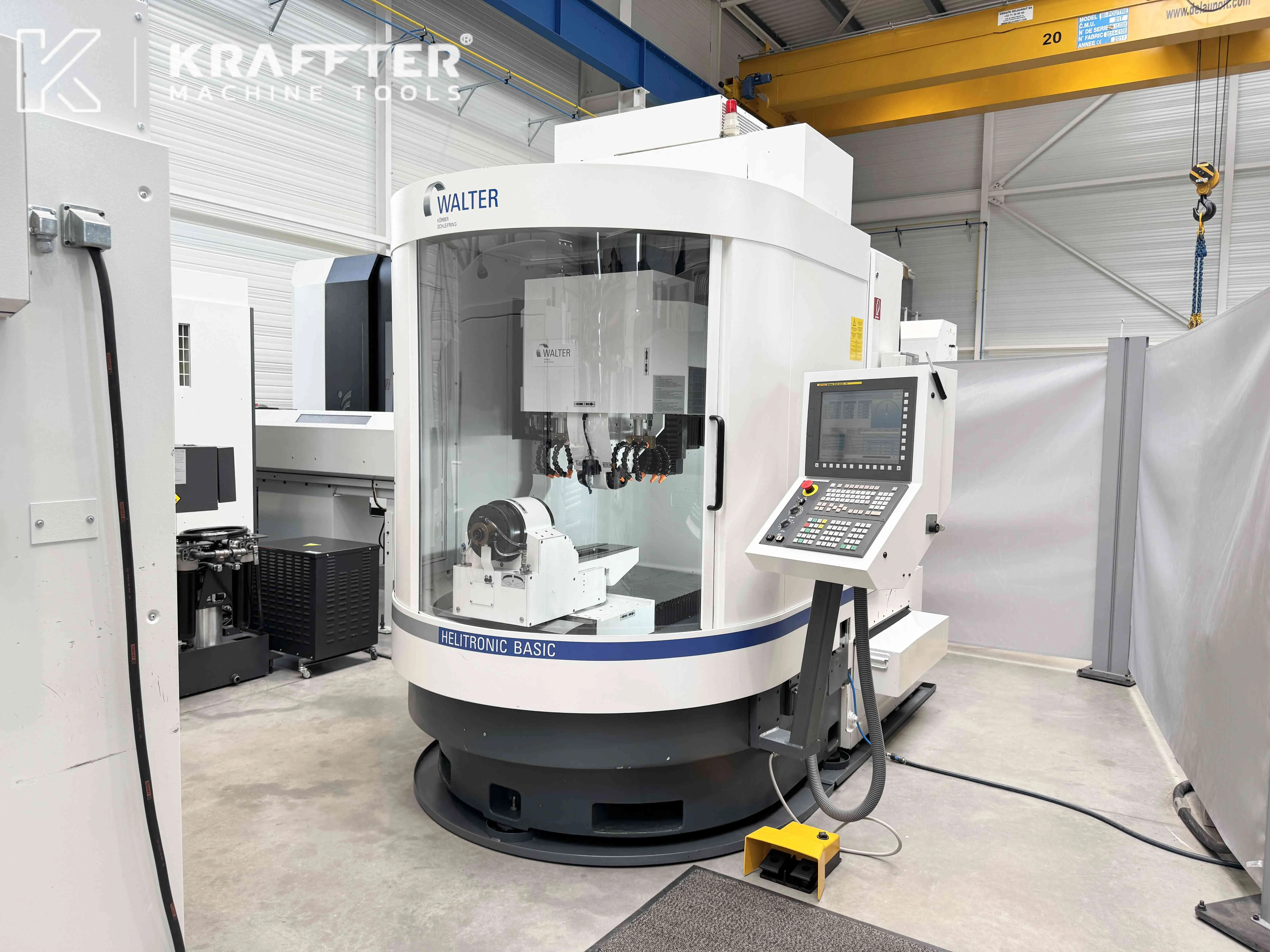

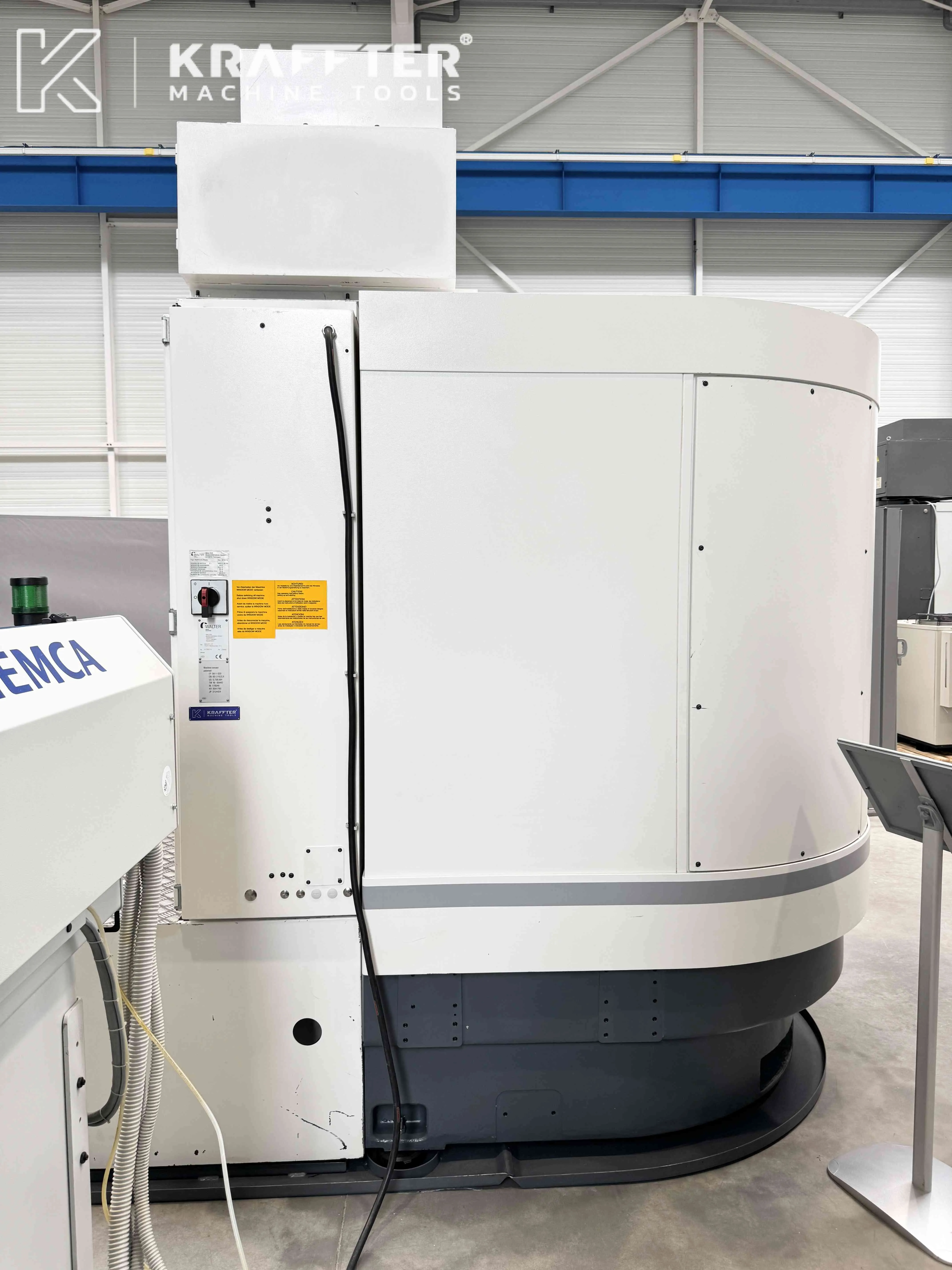

WALTER Helitronic Basic - CNC tool grinding machine
TECHNICAL CHARACTERISTICS :
Year of manufacturing : 2008

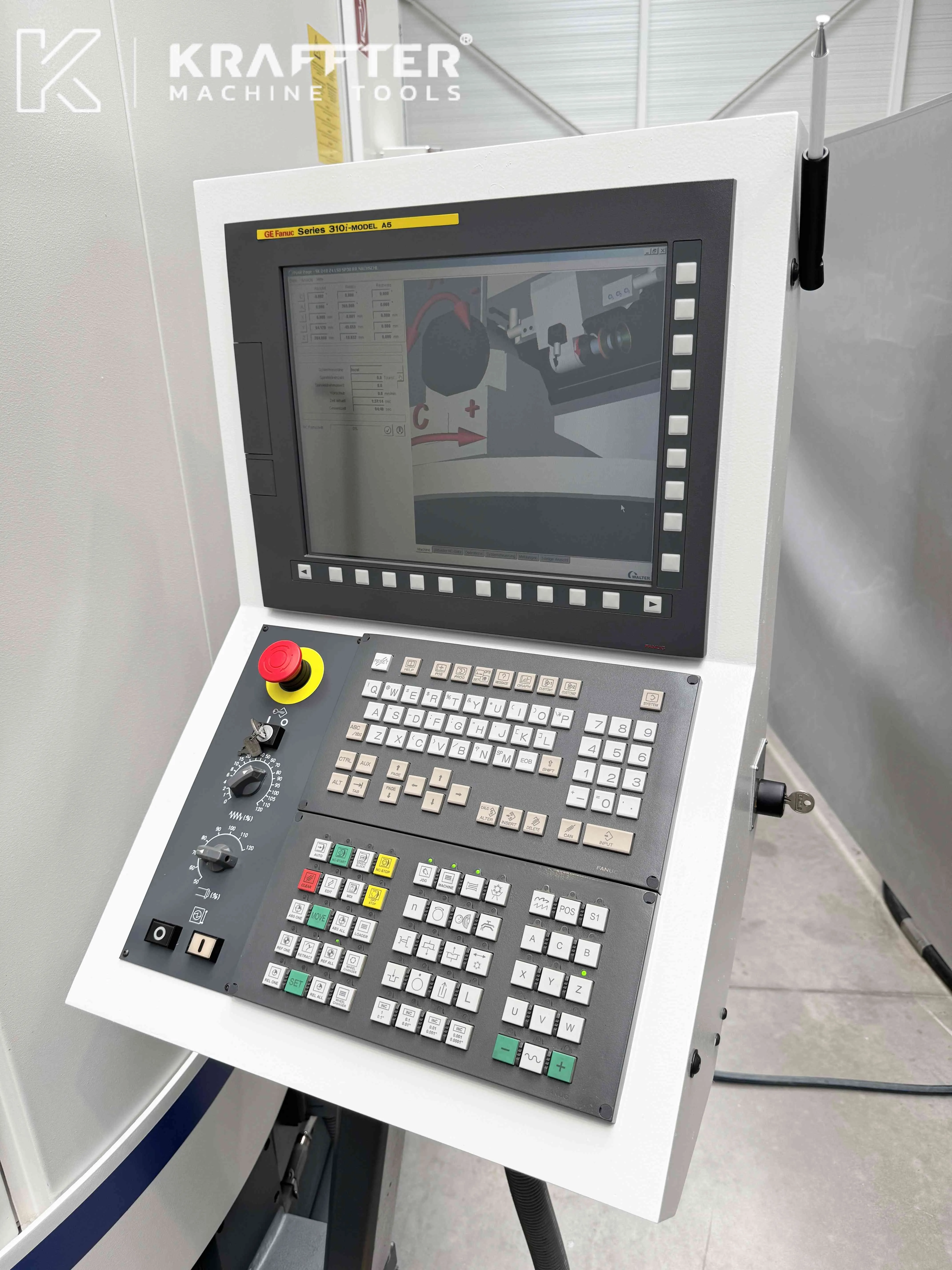

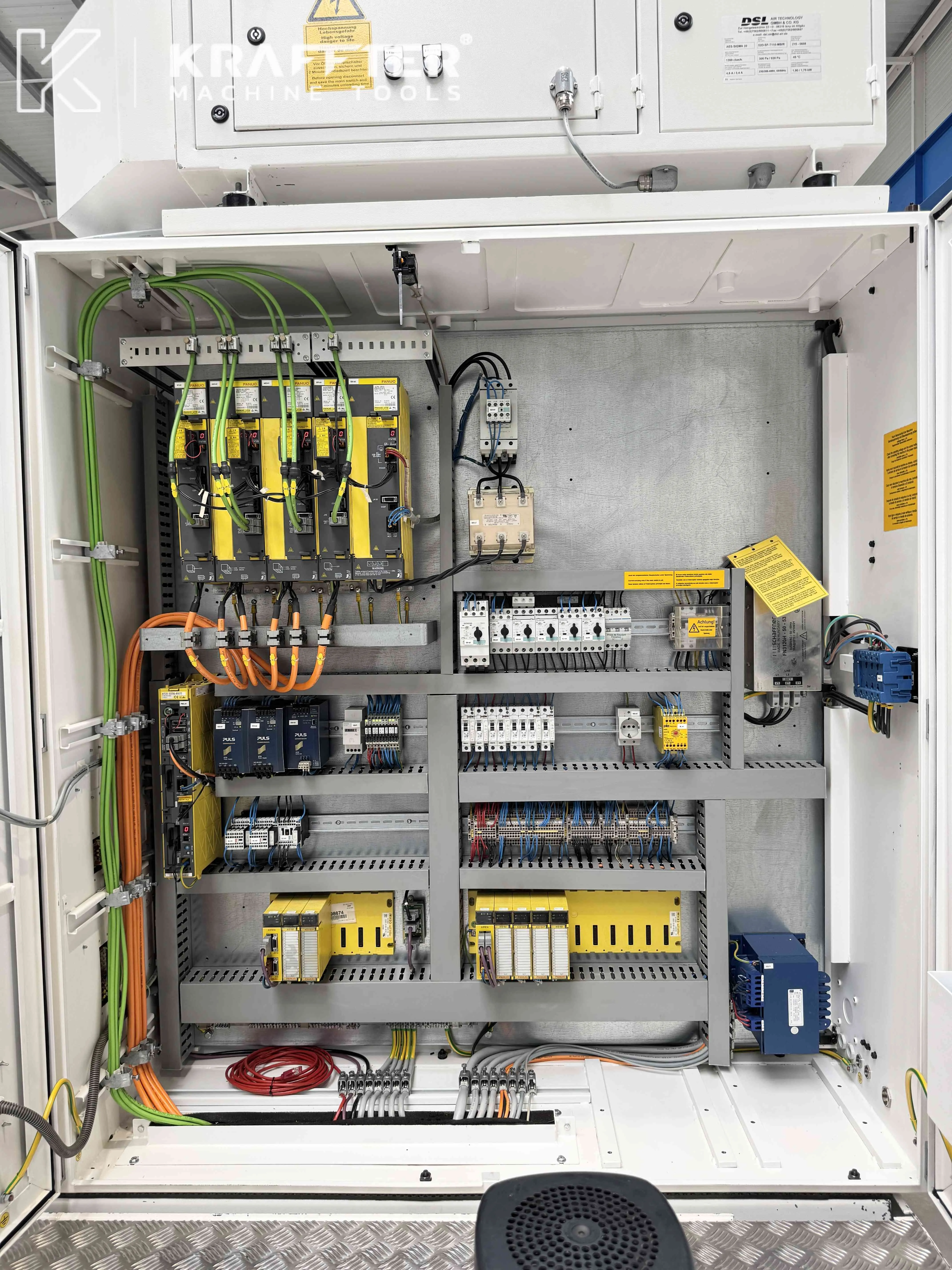

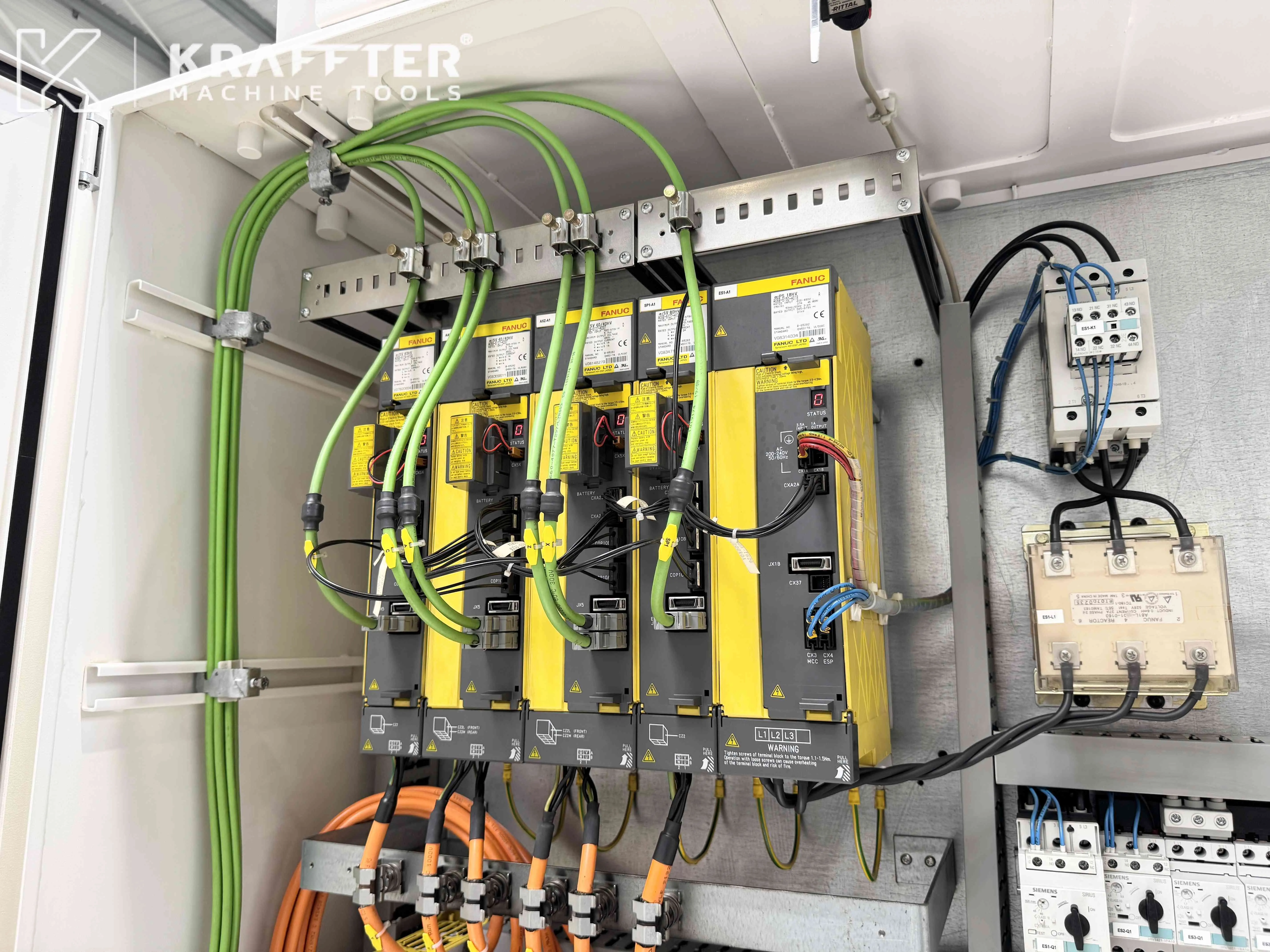

CNC control : FANUC 310i - MODEL A5
Software installed: Tool Studio Version 1.70.0.136
Number of axes: 5
Stroke X axis: 470 [mm]
Stroke Y axis: 330 [mm]
Stroke Z axis: 640 [mm]
Traversing feeds X, Y and Z axes: 15000 [mm/min]

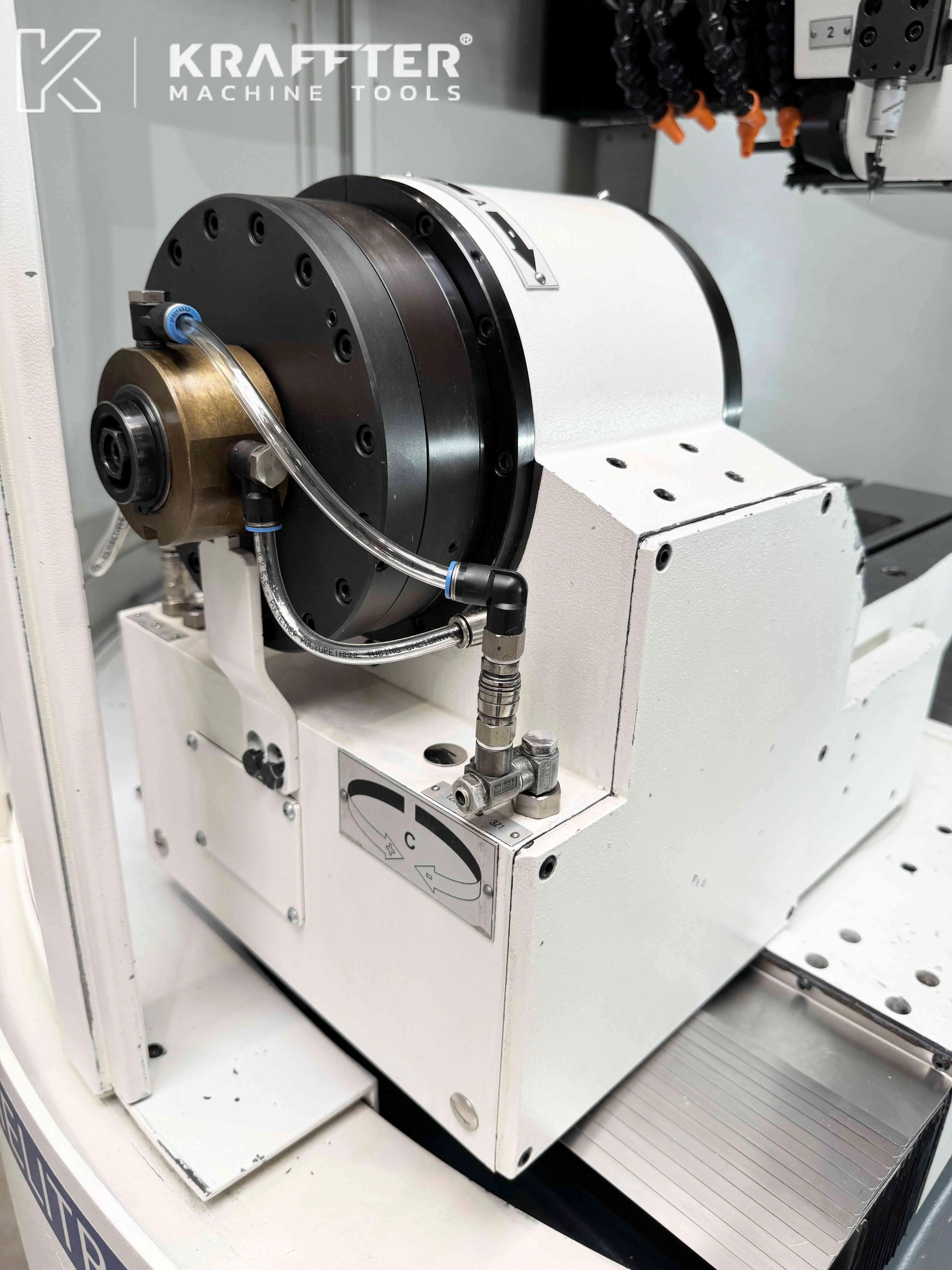

A axis: 360 [°]
C axis: +/- 200 [°]
Max. workpiece lenght : complete processing: 255 [mm]
Max. workpiece lenght : peripheral grinding: 350 [mm]
Max. workpiece lenght : end face grinding: 280 [mm]
Max. grinding diameter: 320 [mm]
Max. grinding diameter with automated work table: 290 [mm]

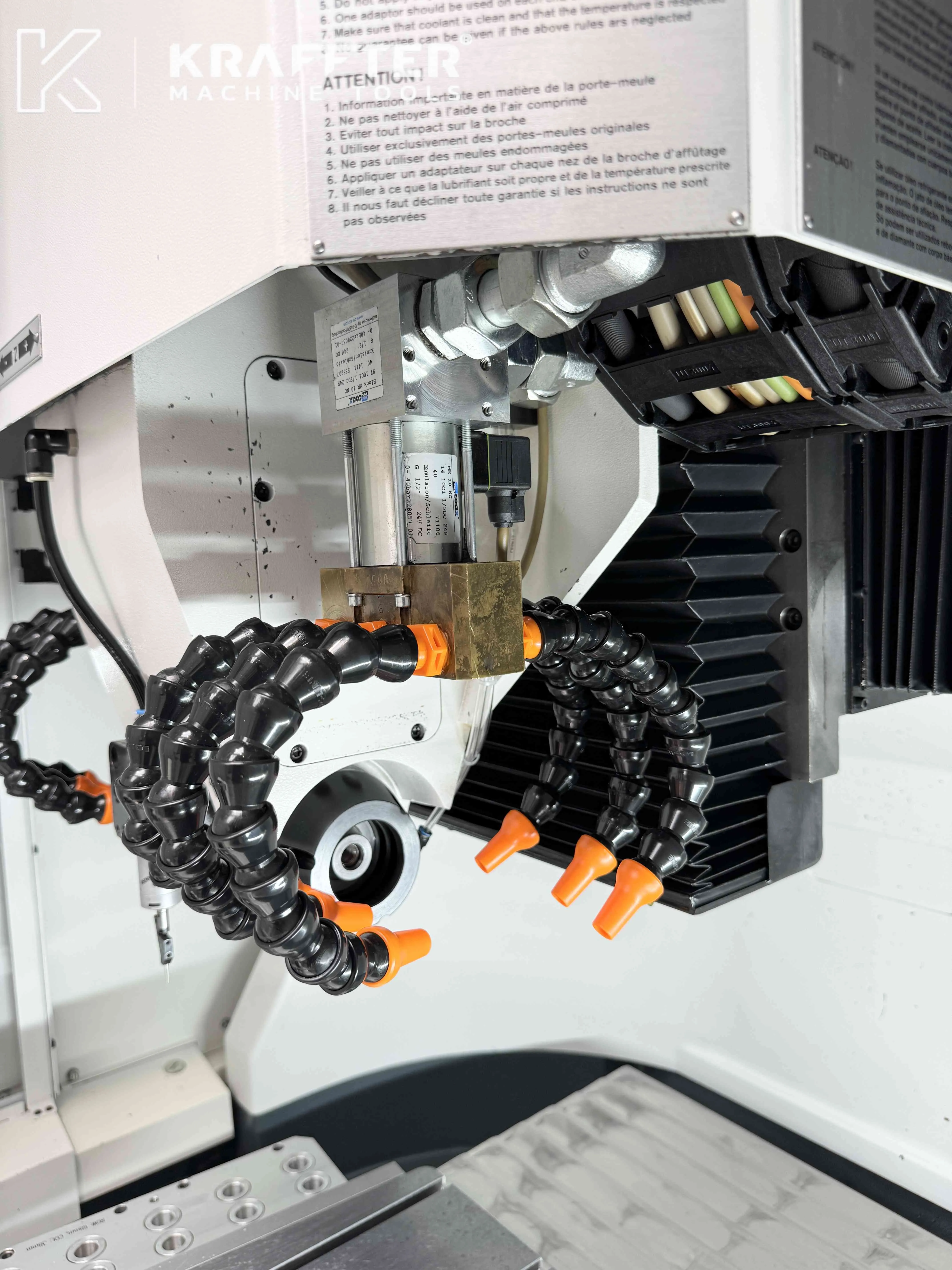

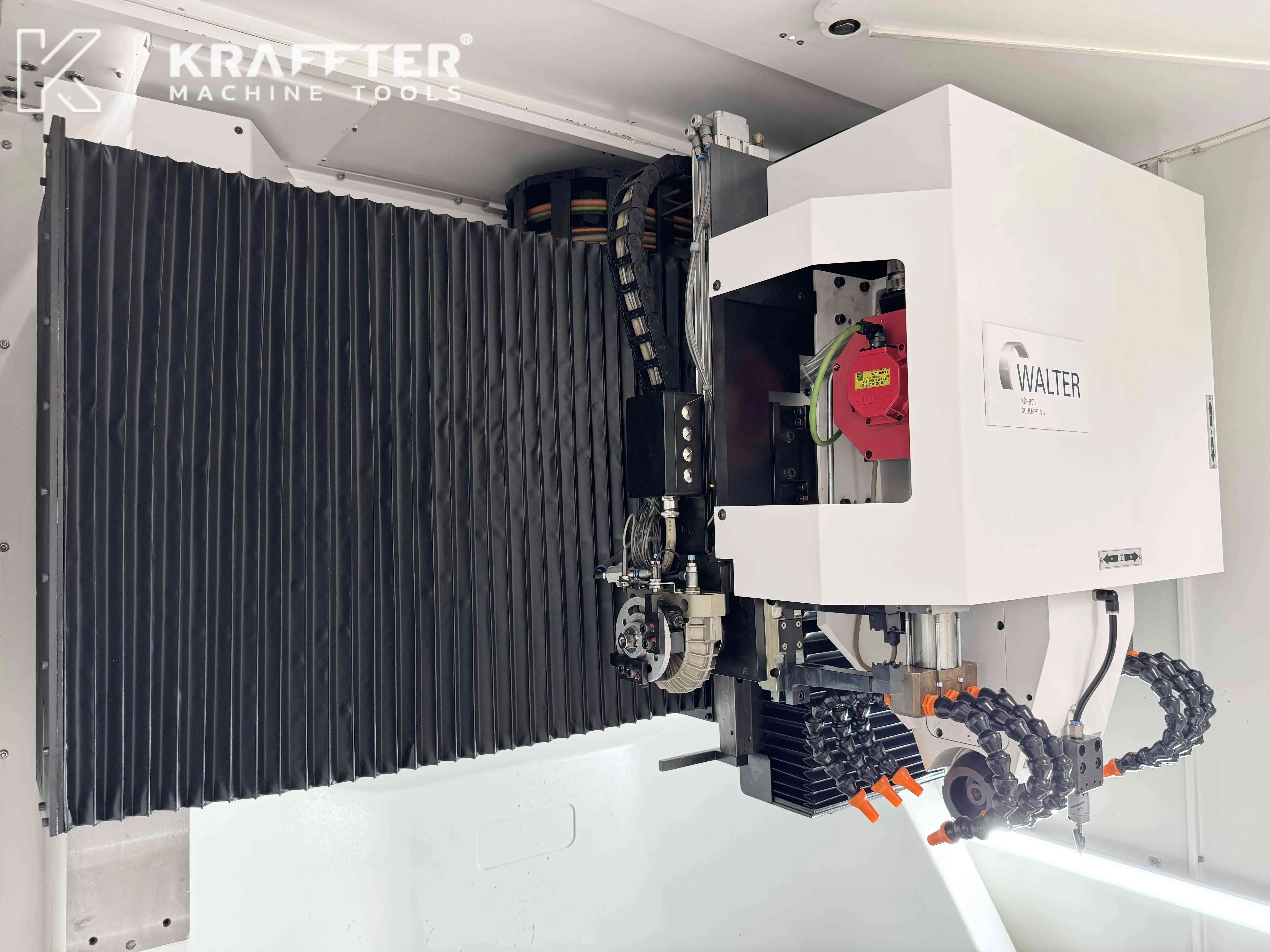

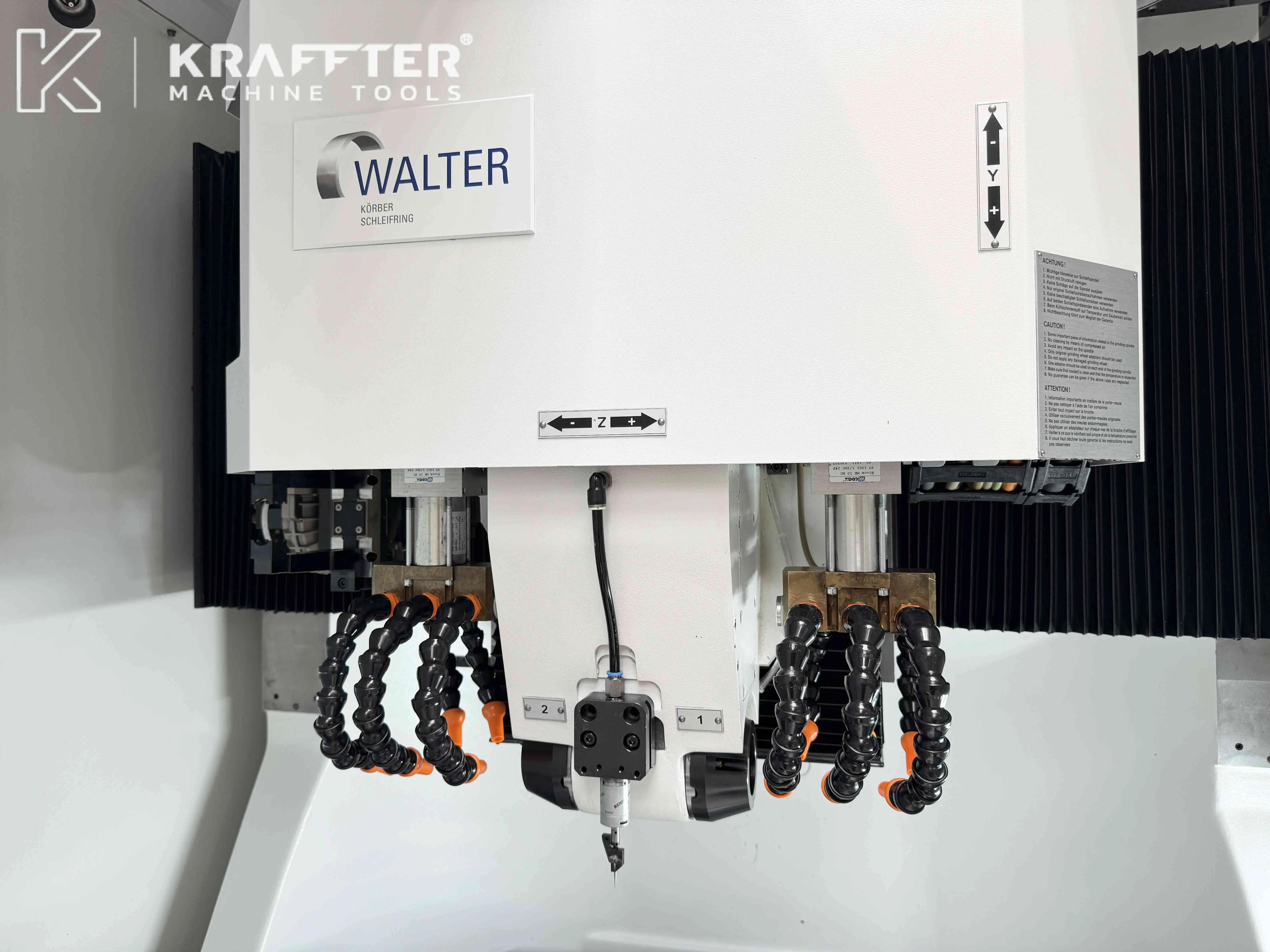

Grinding spindle attachment: NCT
Grinding spindle diameter: 70 [mm]
Grinding wheel speed: 10500 [rpm]
Grinding spindle motor power: 7 [kW]
Max. diameter grinding wheel: 150 [mm]

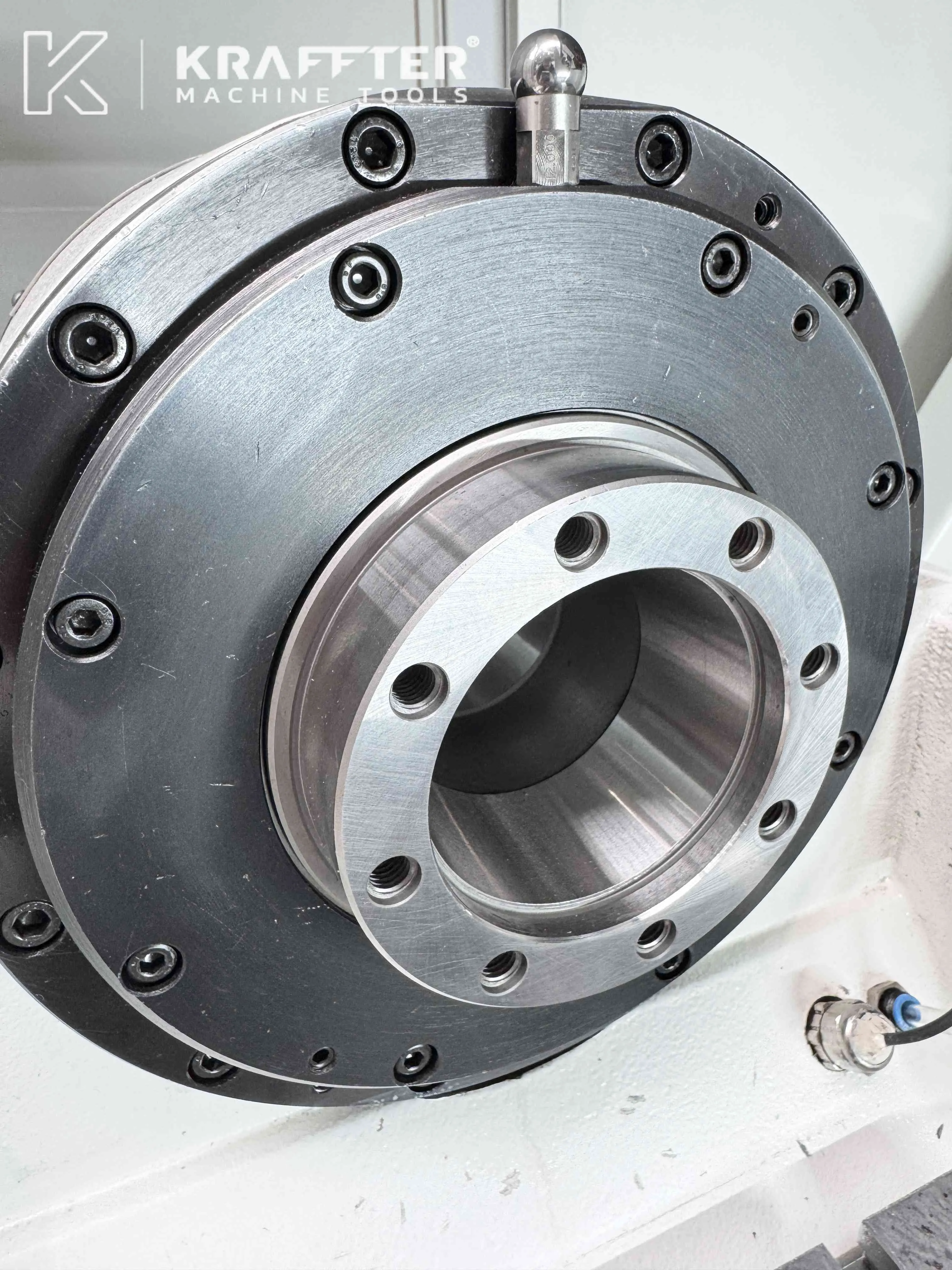

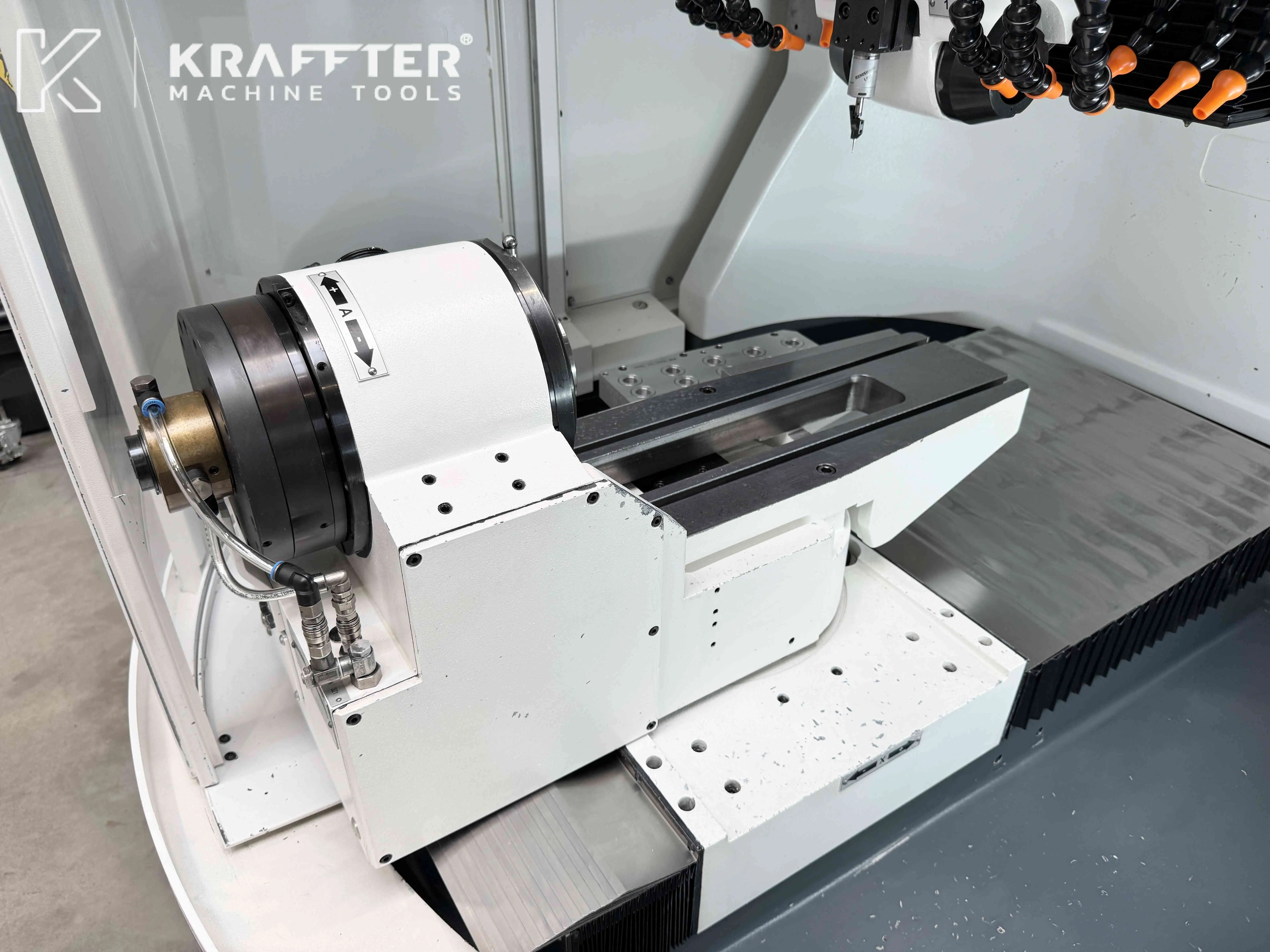

Workpiece spindle nose: ISO 50
Max. part weight in part holder headstock: 20 [Kg]
Coolant pump pressure: 7 [bars]
Collant pump flow rate: 80 [l/min]
Lubrication tank capacity: 350 [l]
Supply voltage: 400 [V]
Number of running hours: 10755 [h]
Weight: 4500 [Kg]
EQUIPMENT INCLUDED:
x1 Software TOOL STUDIO 1.7
x1 ECO LOADER automatic tool loader

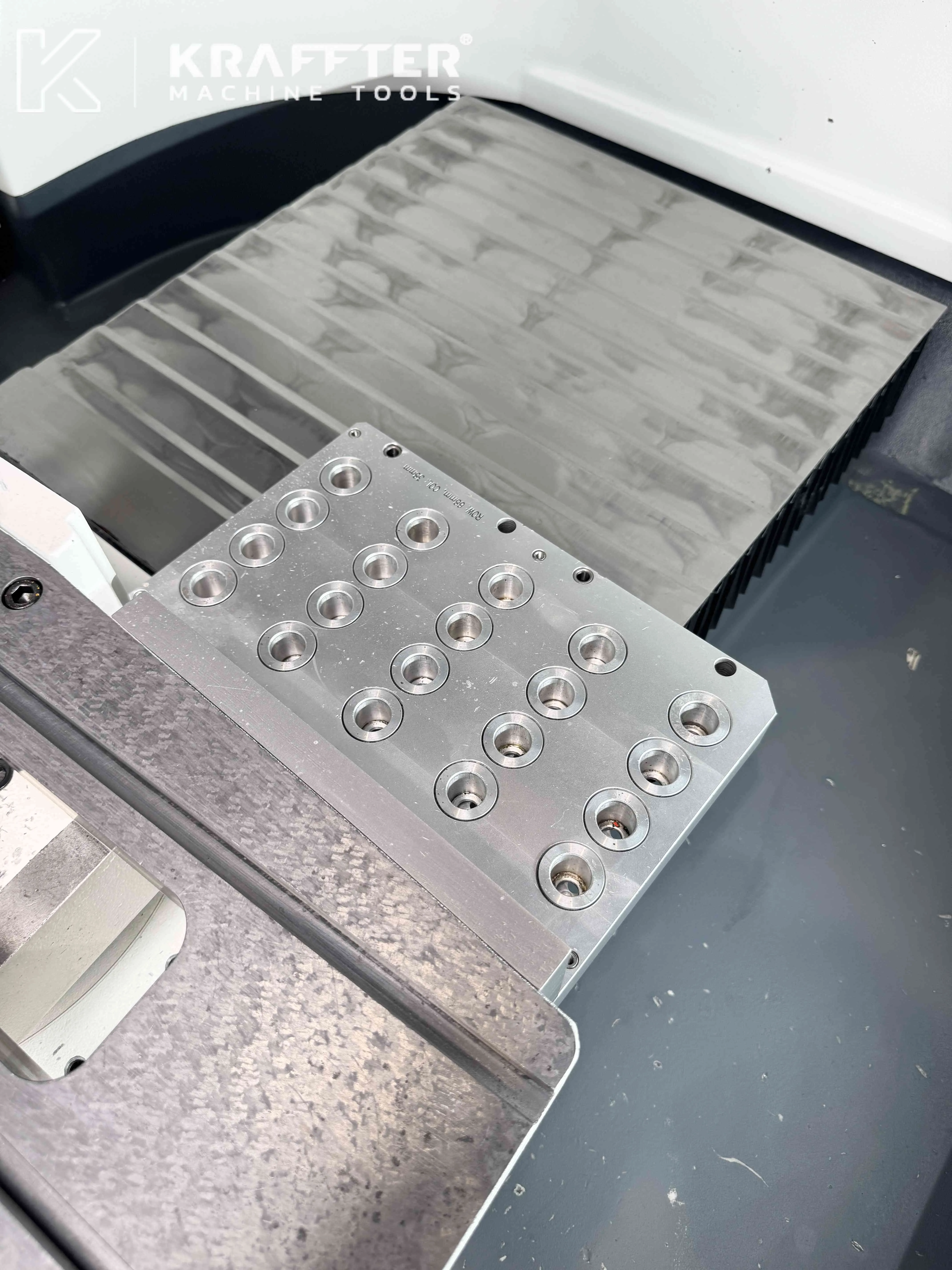

x1 tool palett (20 positions)
x1 automatic tool clamping unit

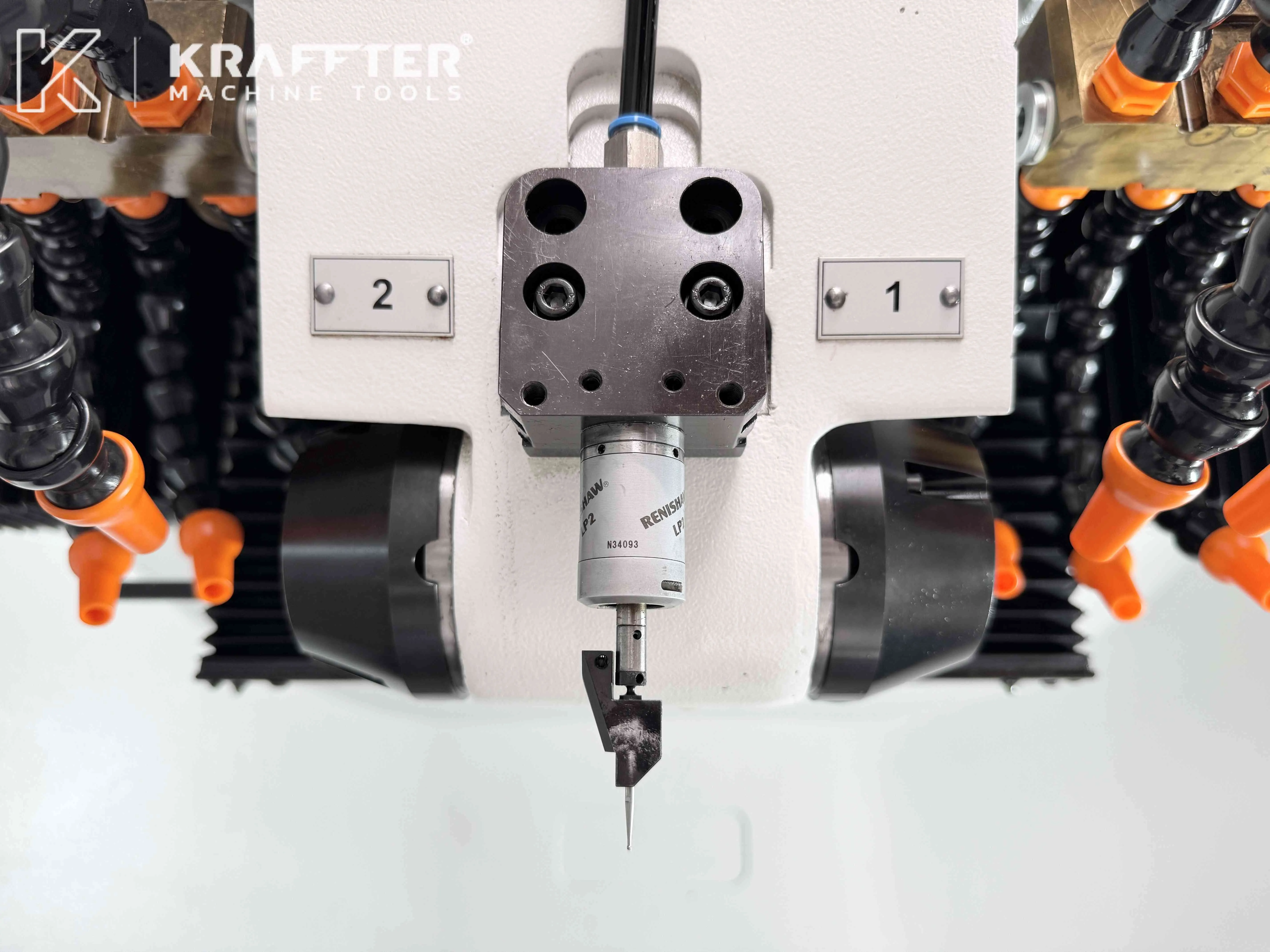

x1 RENISHAW tool probe
x1 calibration ball option : automatic calibration of X, Y and Z axes

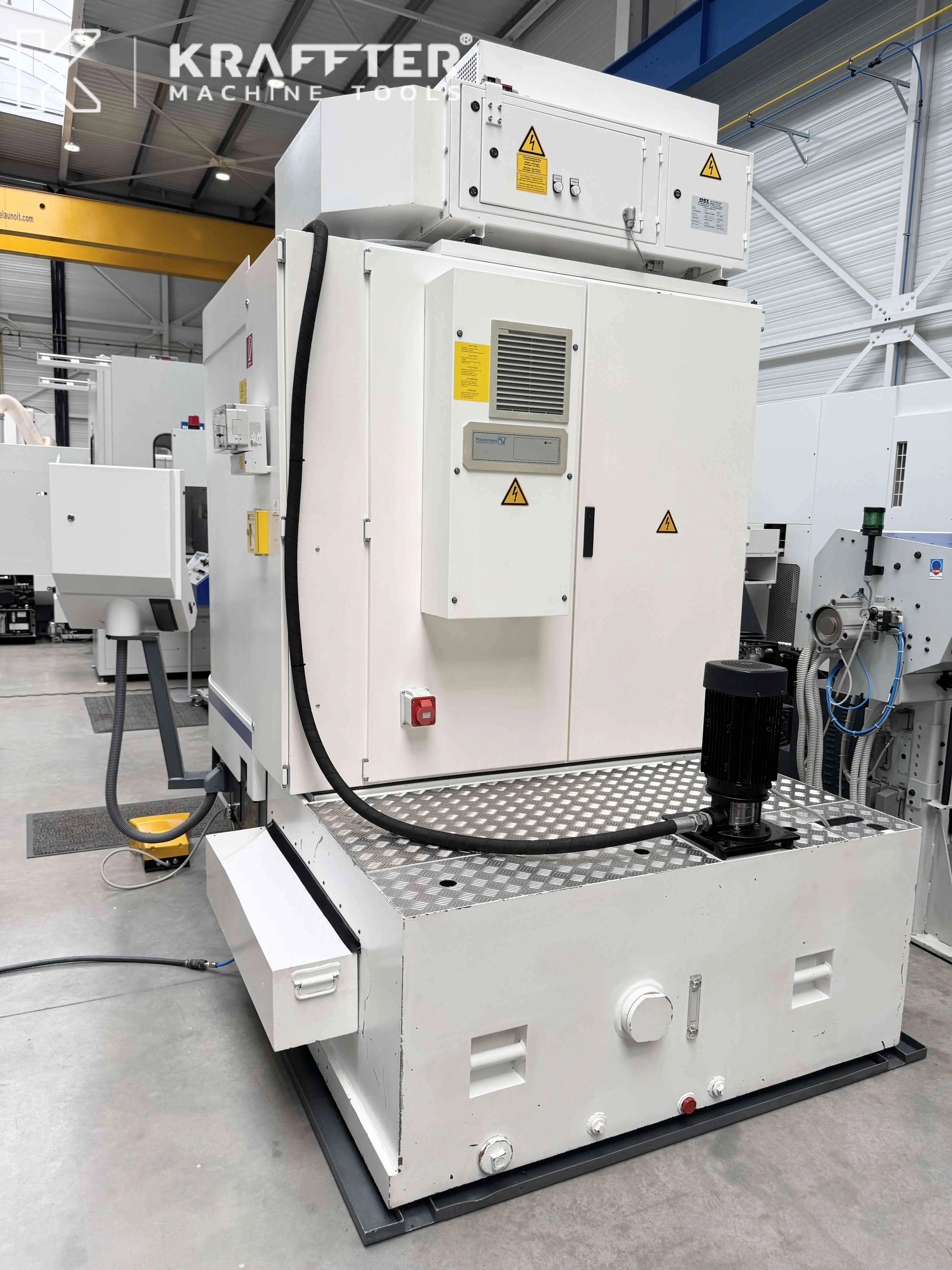

x1 DSL AIR TECHNOLOGY AES-SIGMA 20 type oil mist extractor
x1 lubrication tank
x1 paper band filtration unit
x1 GRUNDFOS coolant pump
x1 fire-fighting system (to be inspected by the purchaser by a qualified body)
x2 wheel flanges + spacers
x1 machine parameter backup

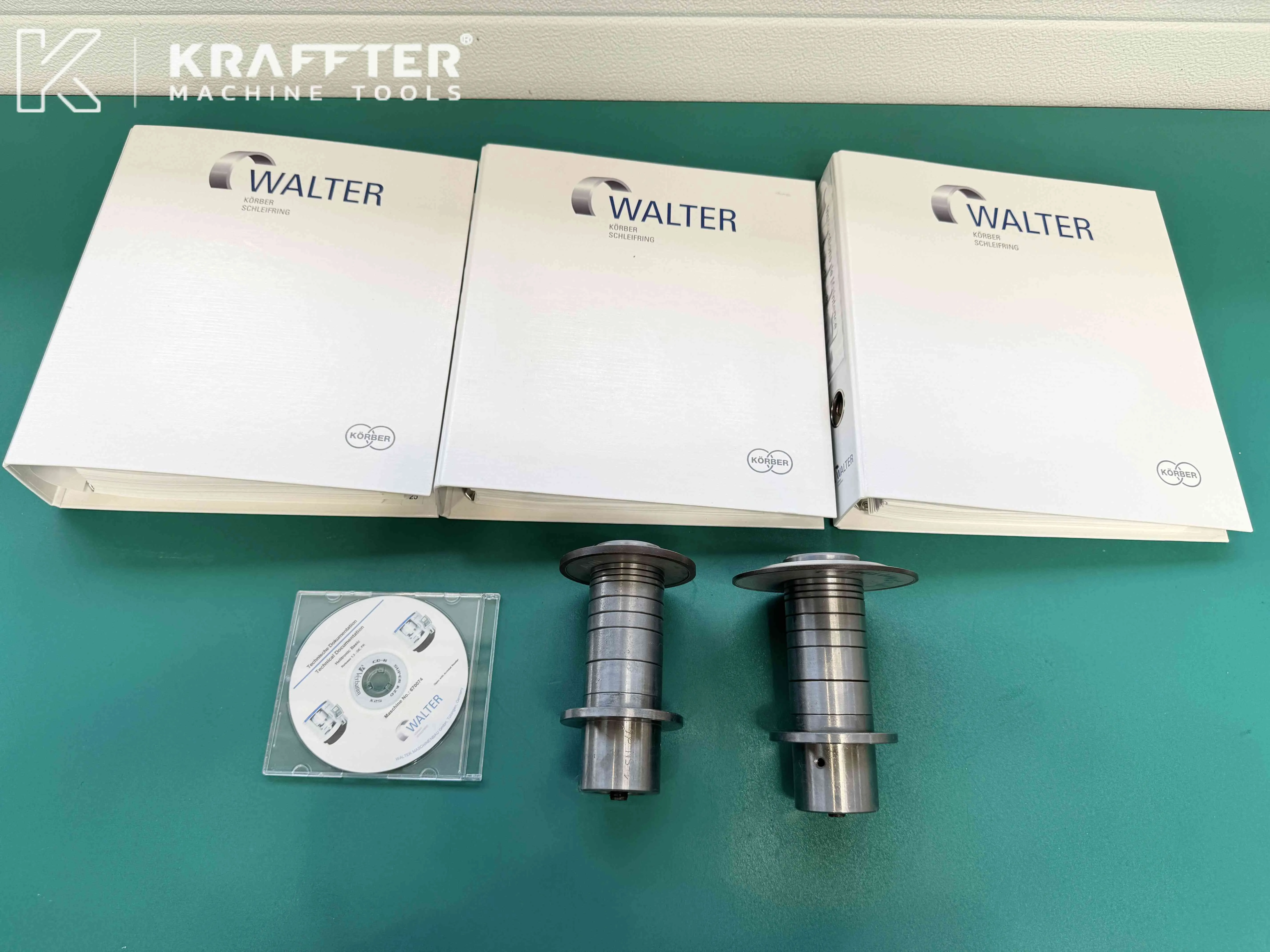

x3 technical manuals (paper format)
x1 technical documentation (CD-ROM format)
ADDITIONAL INFORMATION :
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
