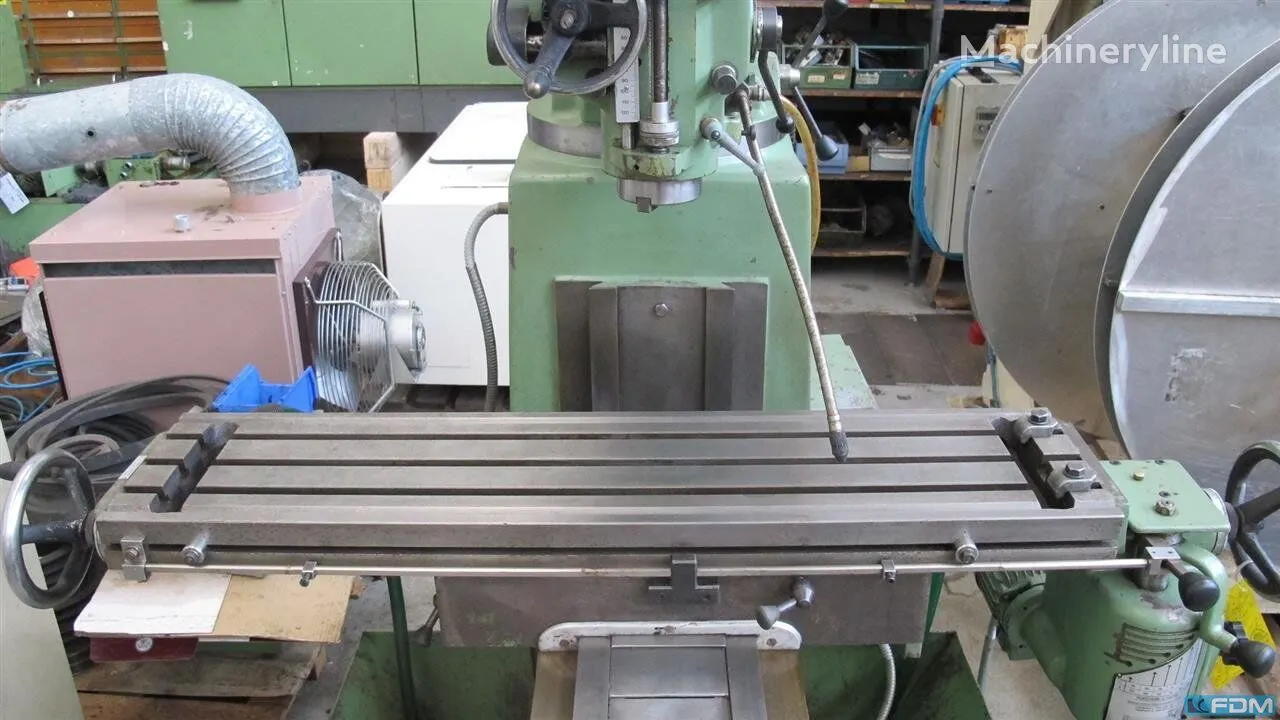

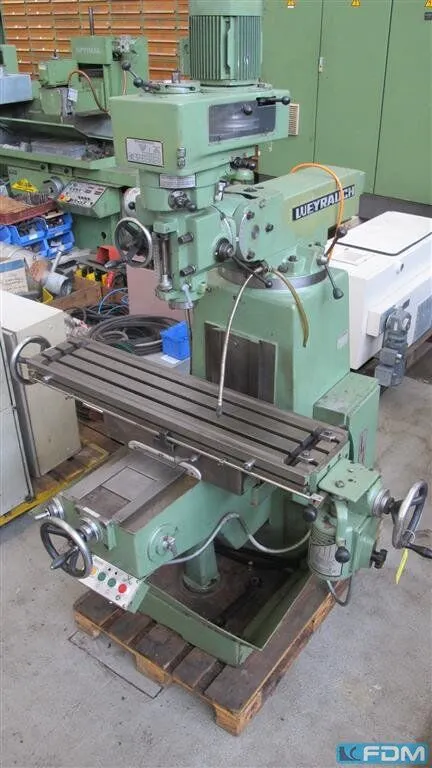

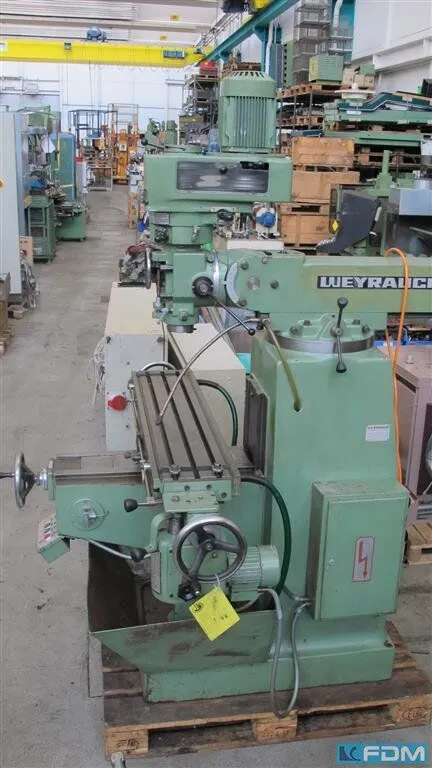

Weyrauch F 10 V metal milling machine

Year of Manufacture: 1973

Condition: Used

Travel X-Axis: 815 mm

Travel Y-Axis: 400 mm

Travel Z-Axis: 410 mm

Quill Stroke: 130 mm

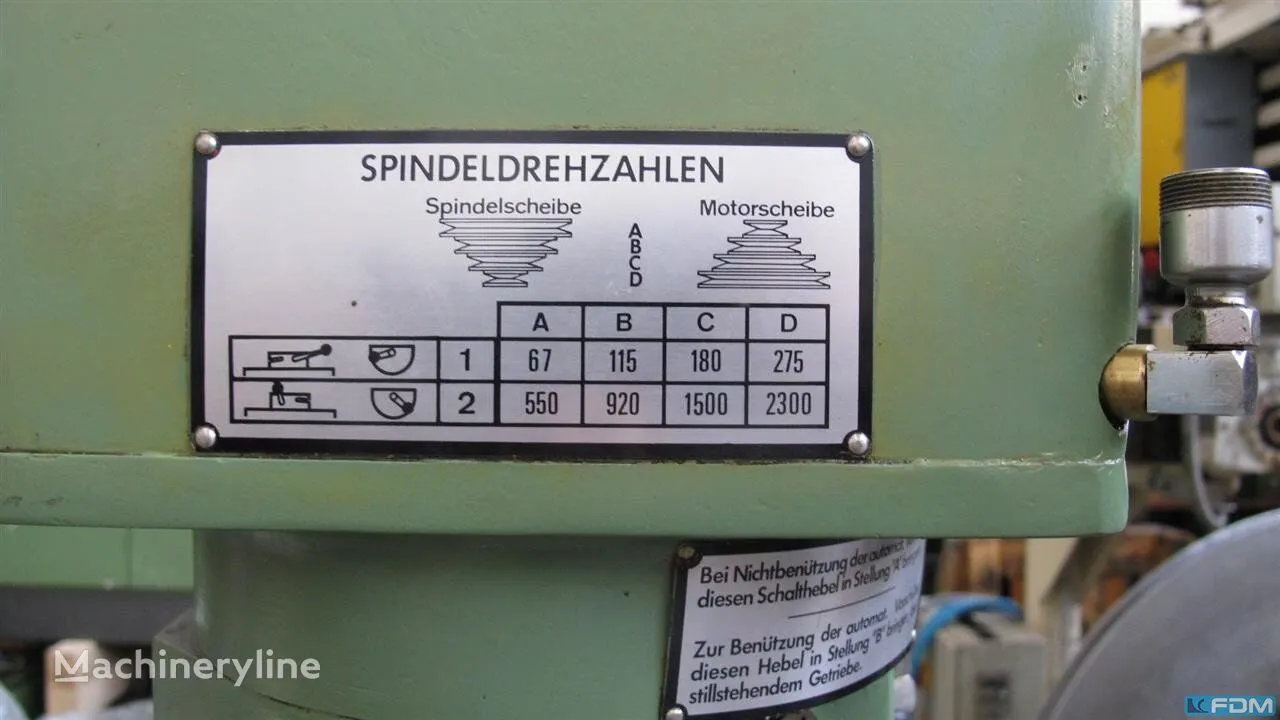

Spindle Speed Range (stepless): 67 – 2300 rpm

Feed Speeds (table): 15 – 230 mm/min

Drilling Feed Rates: 0.04 / 0.08 / 0.15 mm/min

Table Surface Area: 1120 × 255 mm

T-Slots: 3

T-Slot Width: 16 mm

T-Slot Distance: 63 mm

Distance Spindle to Column: 260 mm

Ram Adjustment: 315 mm

Main Drive Motor: 1.5 kW

Machine Weight: approx. 1.0 t

Machine Dimensions: 1.75 × 1.80 × 2.10 m
