CNC Machining Center FAGIMA Jazz L 5 AX
AB-2510-2
Le Jasmin, Saint-Genix-les-Villages, France

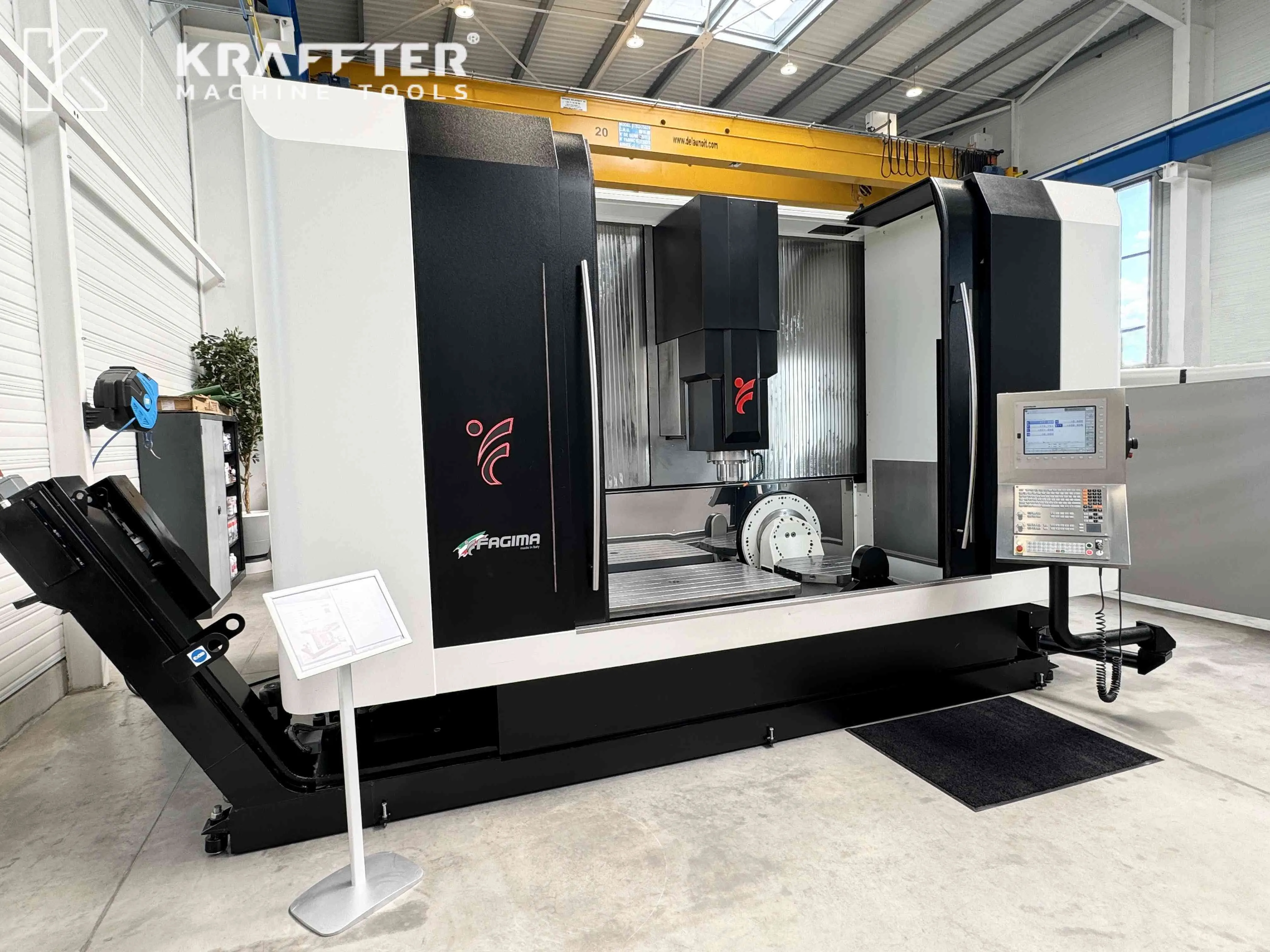

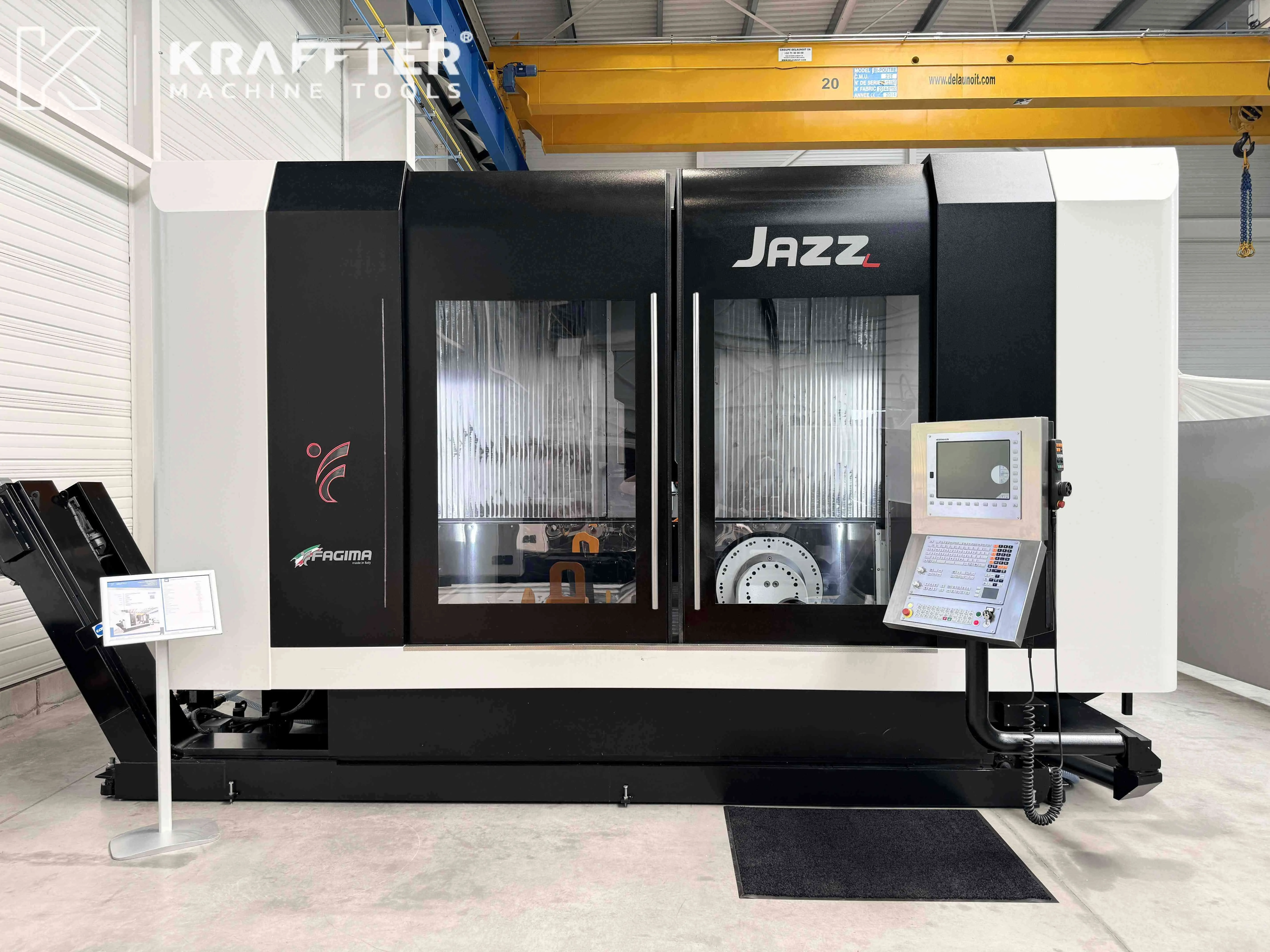

Vertical machining center FAGIMA Jazz L5 AX
TECHNICAL CHARACTERISTICS :

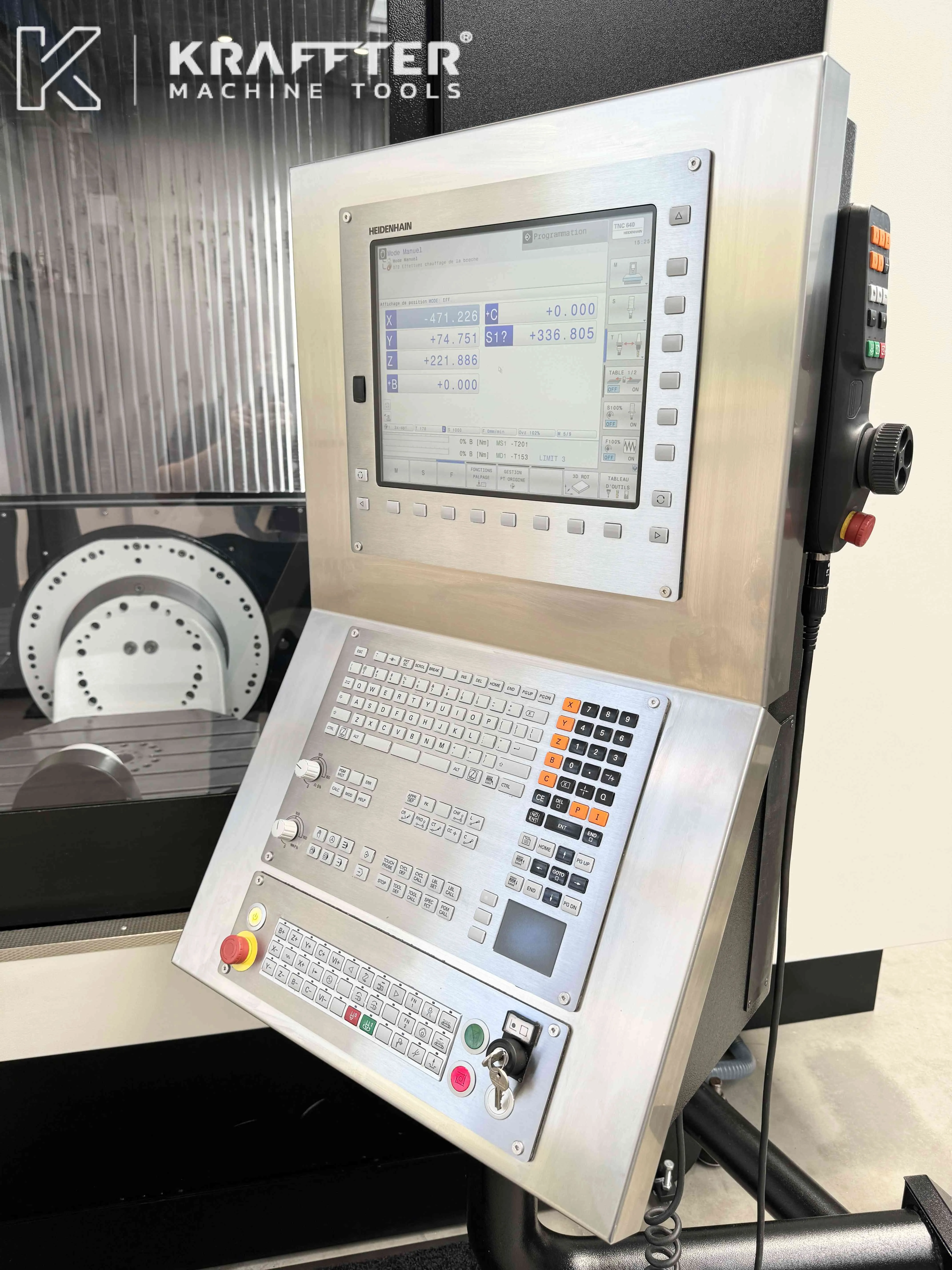

CNC control : HEIDENHAIN iTNC 640
Number of simultaneous axes : 5
Stroke X axis : 2000 [mm]
Stroke Y axis : 600 [mm]
Stroke Z axis : 550 [mm]
Feed rate on X, Y and Z axes : 20000 [mm/min]
Traversing feeds X, Y and Z axes : 40000 [mm/min]
Axes acceleration : 2.5 [mm/sec²]
Min. distance spindle nose / table : 30 [mm]

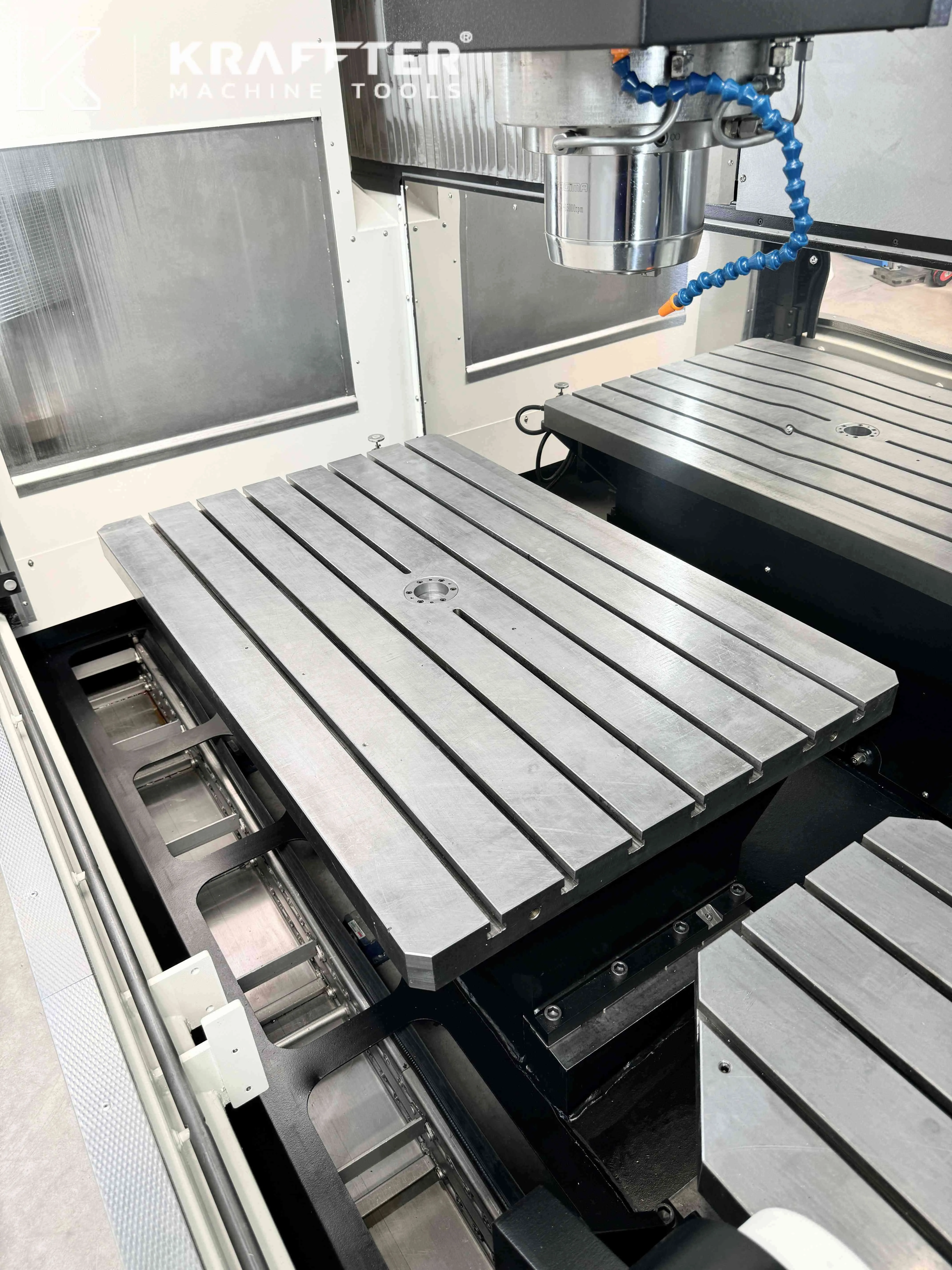

Table length : 1250 [mm]
Table width : 800 [mm]
Max. load on table : 500 [Kg]

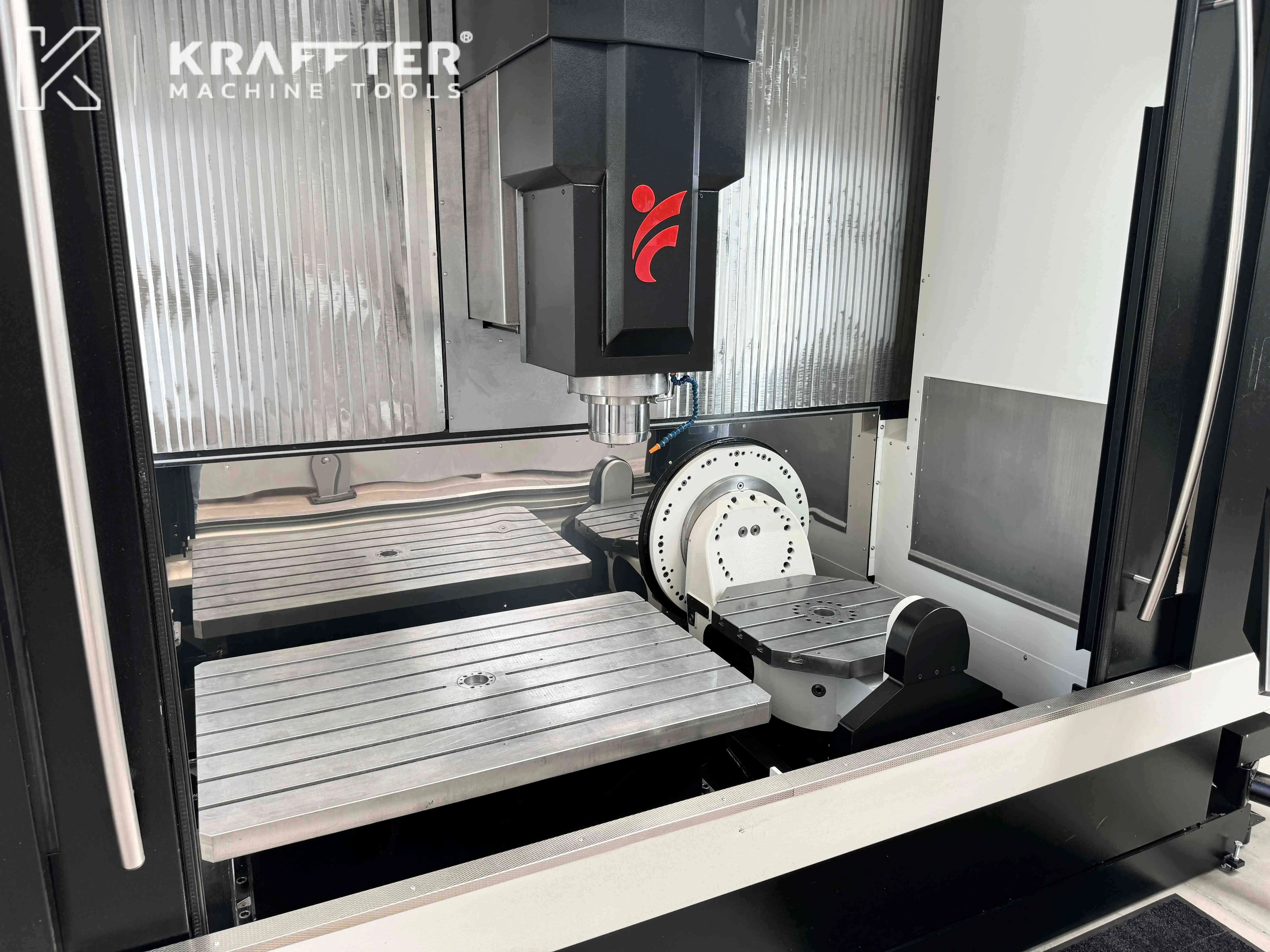

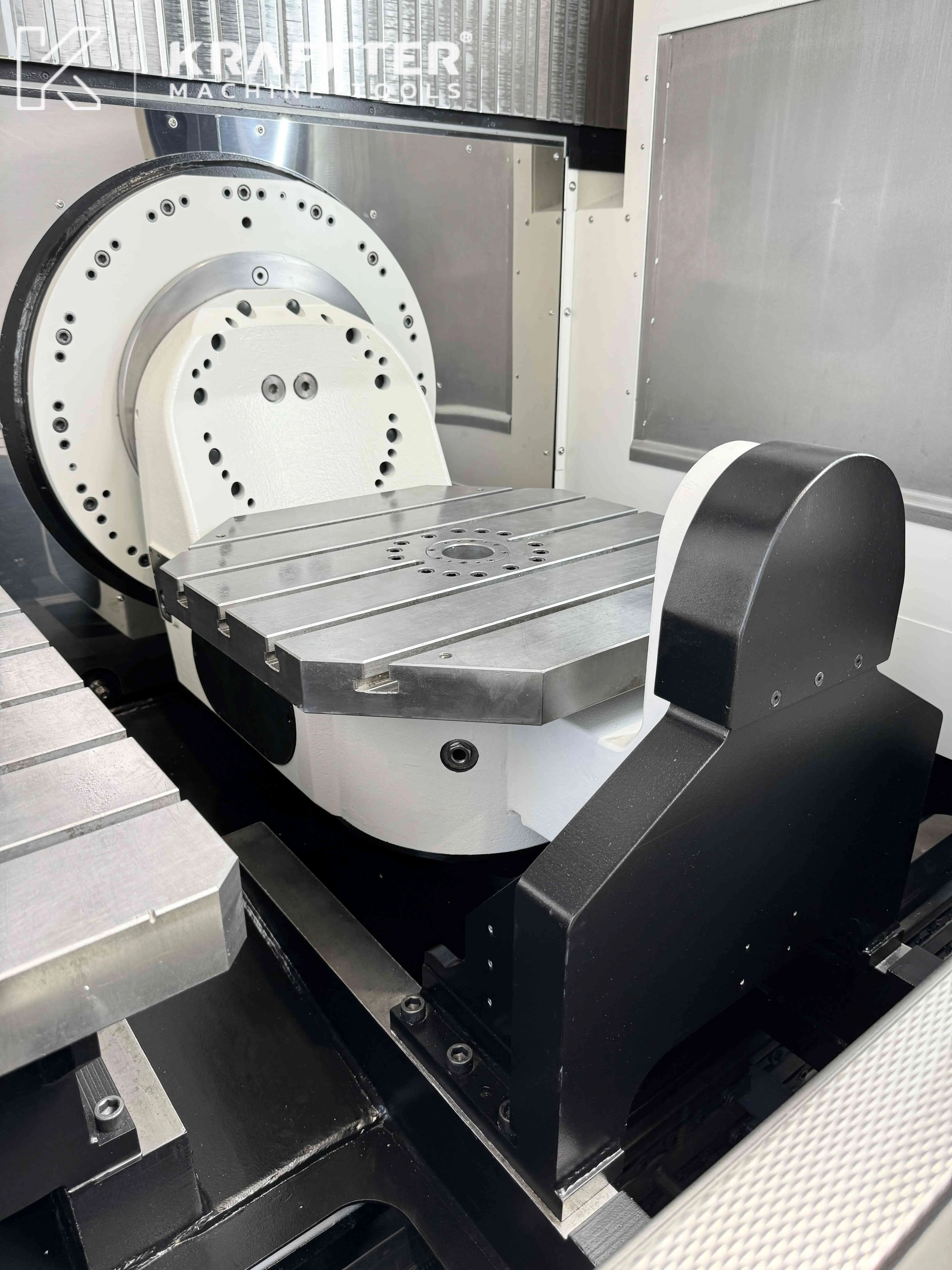

Rotary tilting table surface : 600 x 600 [mm]
Stroke C axis : table revolution : 360 [°]
Max. speed C axis : 25 [rpm]
B axis swivelling stroke : -110 / +110 [°]
Spindle type : ISO 40
Max. spindle speed : 15000 [rpm]
Spindle power : 17 [kW]
Tool changer magazin number of stations : 80
Max. tool length : 300 [mm]
Max. weight of single tool : 7 [Kg]
Total max. weight in tool changer magazin : 400 [Kg]
Total power required : 57 [kVA]
Supply voltage : 400 [V]
Number of hours under power : 17840 [h]
Weight : 15000 [Kg]
EQUIPMENT INCLUDED :

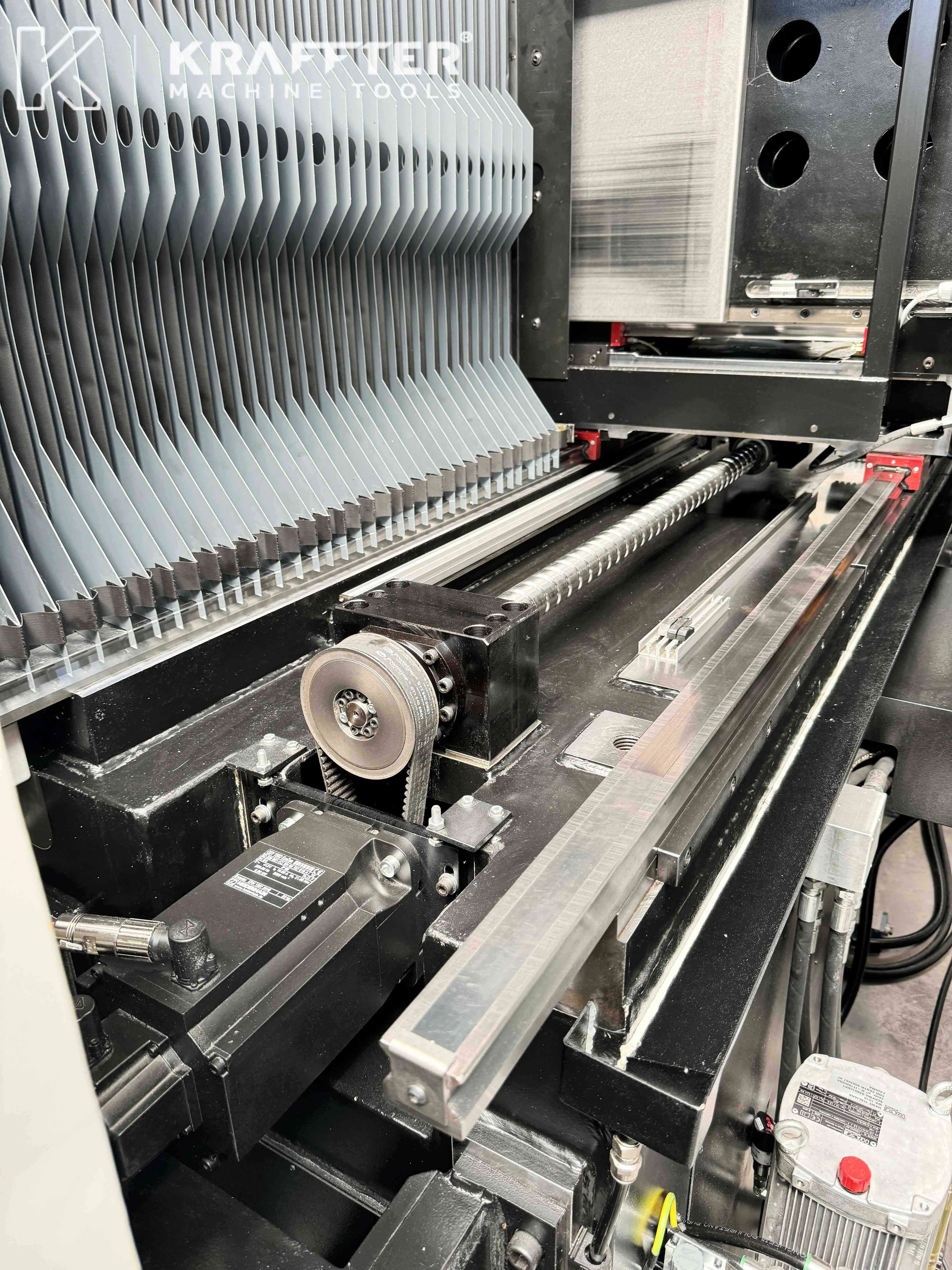

- HEIDENHAIN glass scales on all 3 axes
- Coolant through spindle (20 bars)
- Chip conveyor
- Blowing inside + outside spindle
- Collision monitoring
- Simultaneous 5-axis software

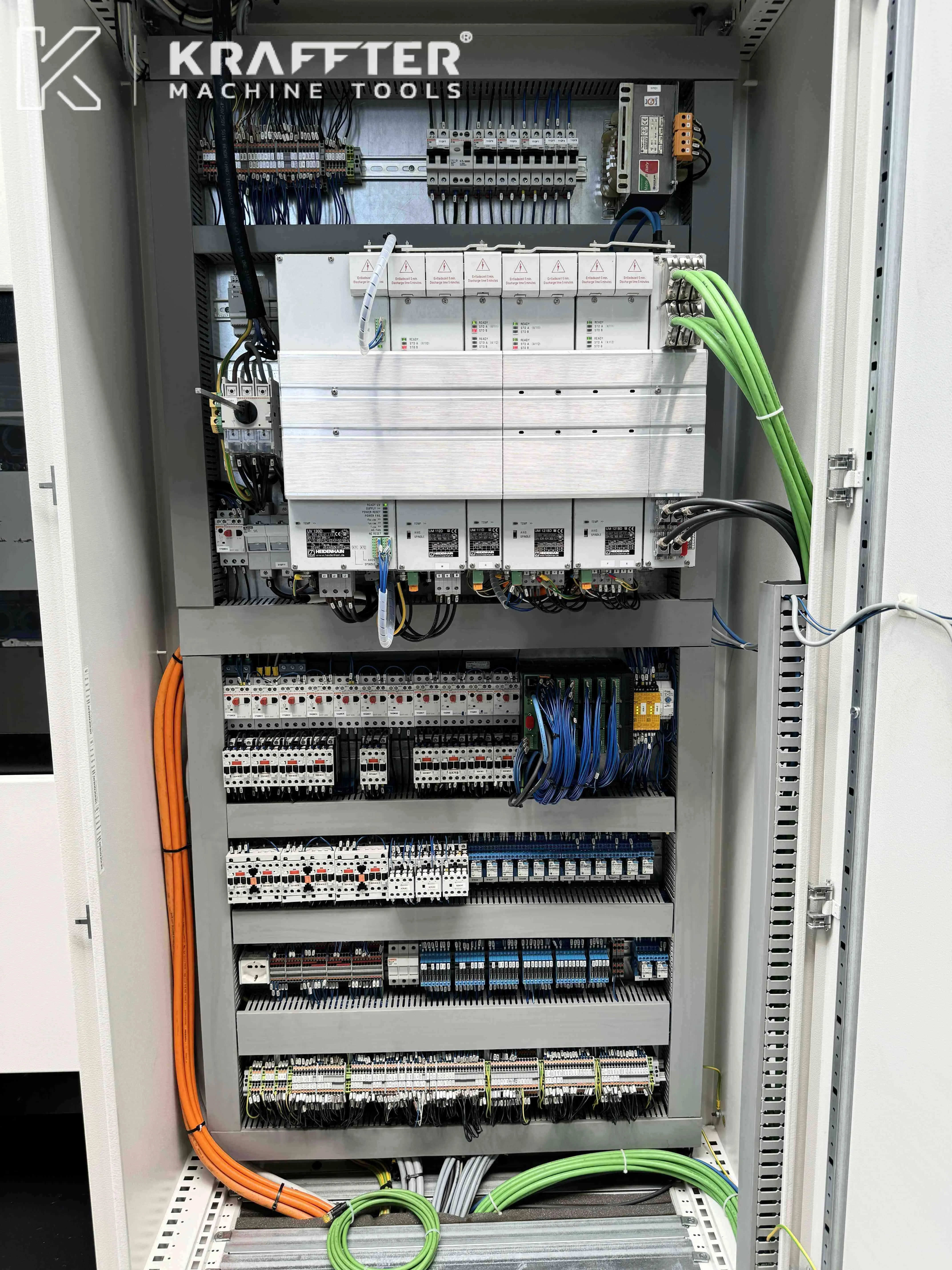

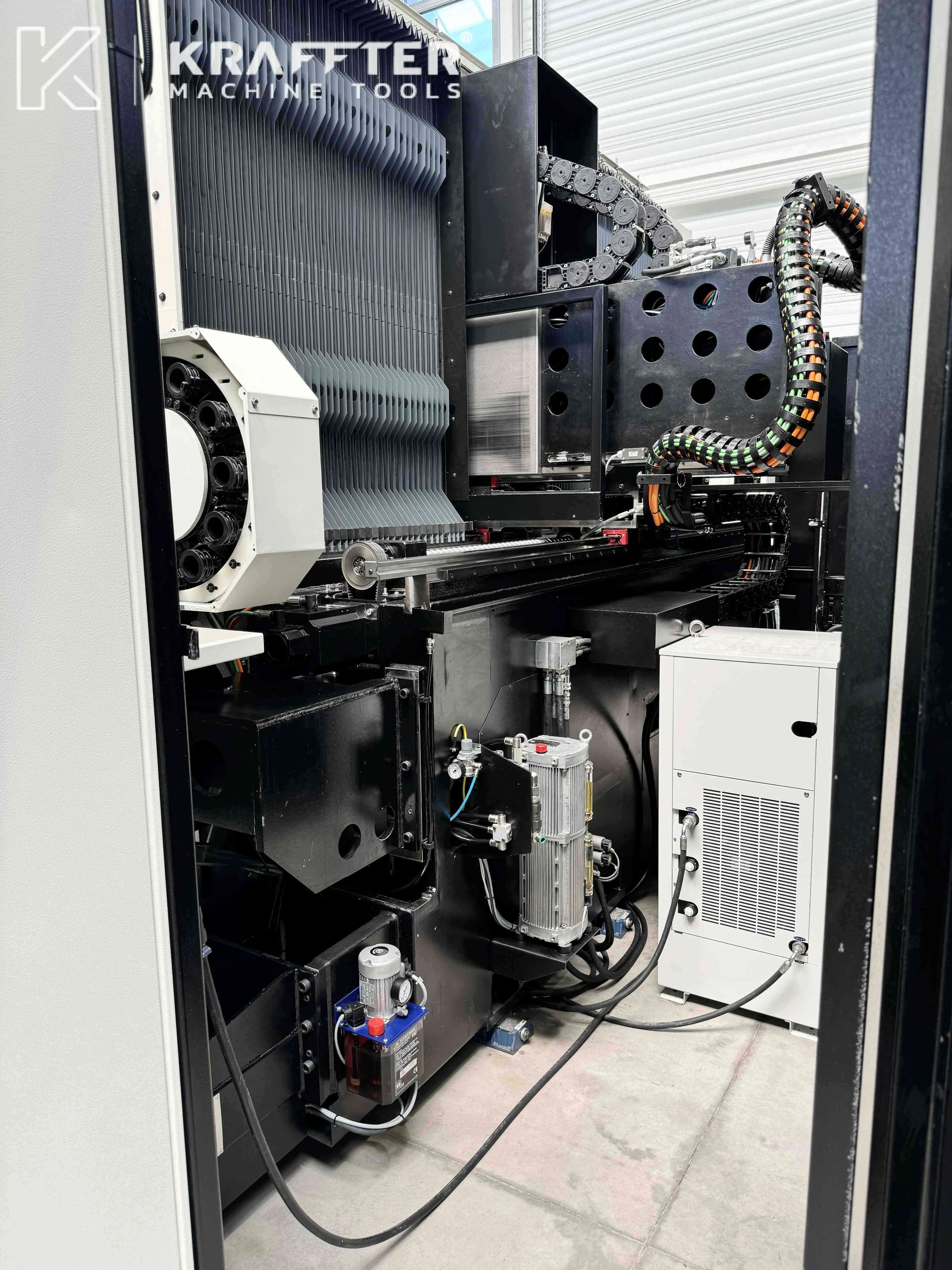

- Electrical cabinet chiller
- HEIDENHAIN part probe
- HEIDENHAIN tool probe
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Worldwide shipping is possible.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
The FAGIMA Jazz L 5 AX is a 5-axis continuous pendulum machining centre designed to provide optimum precision and flexibility for complex machining operations. Thanks to its 5 continuous axes, it can machine complex parts in a single configuration, reducing set-up times and increasing productivity. This machining centre is ideal for the aerospace, medical and automotive sectors, where tight tolerances and machining quality are essential.
Comparable to well-known brands such as Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas and Alzmetall, the FAGIMA Jazz L 5 AX stands out for its ability to integrate milling, drilling and tapping operations with high precision. In addition to its multi-axis machining capabilities, it integrates perfectly into workshops equipped with CNC grinders, milling machines or machining centres, creating a complete solution for versatile machining operations.
