CNC Machining center CHIRON FZ 08K S Magnum
AB-2510-40
Le Jasmin, Saint-Genix-les-Villages, France

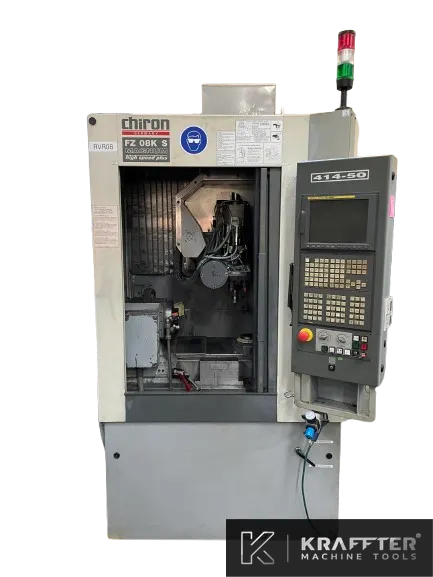

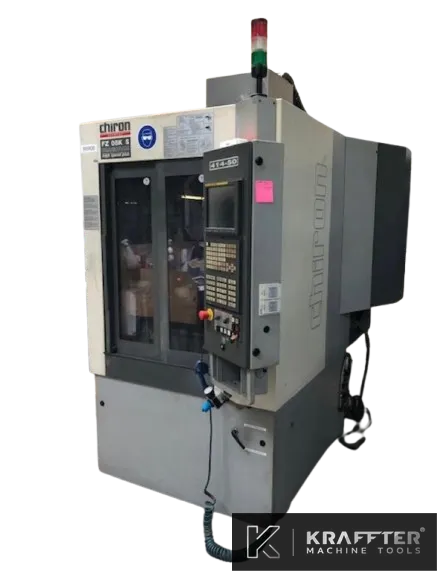

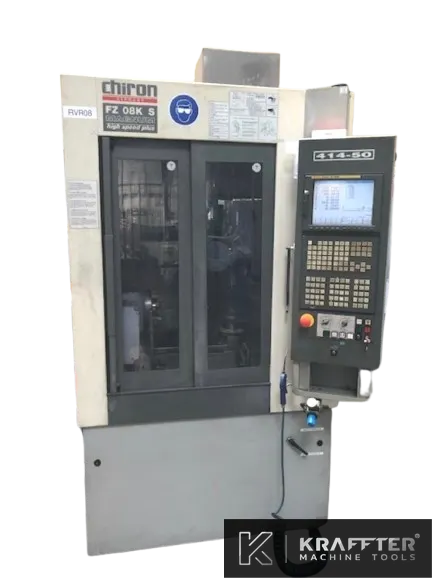

Vertical machining center CHIRON FZ08 KS Magnum
TECHNICAL CHARACTERISTICS:

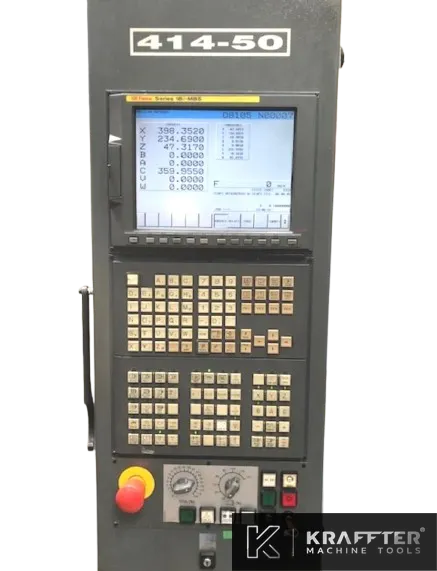

CNC control FANUC 18i-MB5
Number of axes: 7
Stroke X axis: 450 [mm]
Stroke Y axis: 270 [mm]
Stroke Z axis: 310 [mm]
Traversing feeds X, Y and Z axes: 30000 [mm/min]
Max. bar diameter in turning spindle: 32 [mm]
Angular A axis stroke: 360 [°]
A axis indexing precision: 0.001 [°]
B axis swivelling stroke: -20° / +115° [°]
B axis indexing precision: 0.001 [°]
Spindle type: HSK40
Max. spindle speed: 30000 [rpm]
Tool changer magazin number of stations: 49
Part turnaround by robot (6th side machining): Yes
RS232 Interface: Yes
Total power required: 17 [kVA]
Supply voltage: 400 [V]
Number of hours under power: 20292 [h]
Number of running hours: 9911 [h]
Dimensions: 1500 x 2600 x 2300 [mm]
Weight: 3400 [Kg]
EQUIPMENT INCLUDED:

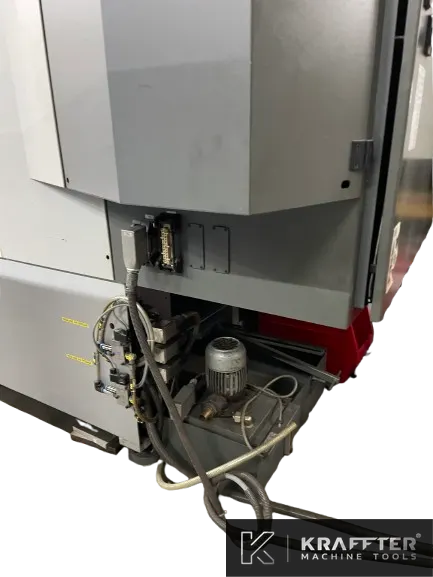

x1 spindle cooling unit
x1 parts catcher with conveying strip
x1 coolant tank
x1 unit for 6th face machining
x1 collet chuck

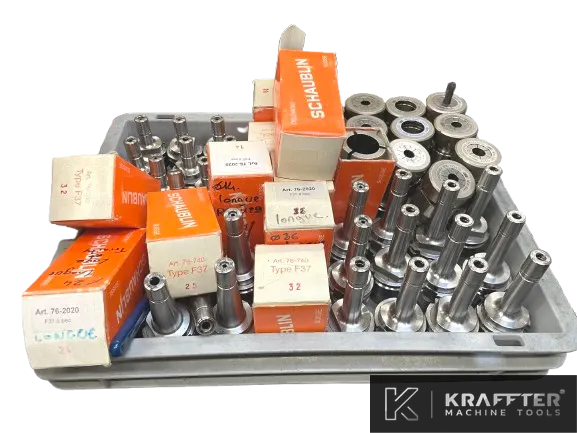

x30 tool holders type HSK40 BIG KAISER
x15 collets type F37 SCHAUBLIN
x1 maintenance manual
x1 electrical diagrams manual
x1 operator's manual
Price on request, loading on truck included.
Possibility of shipping Worldwide.
