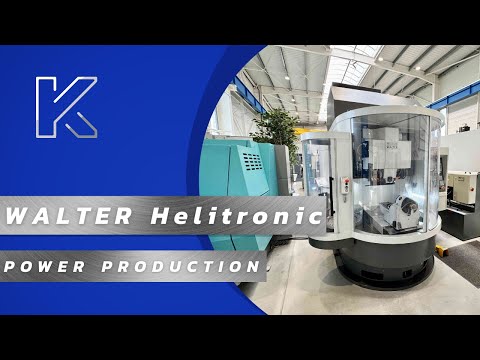

CNC Tool grinding machine WALTER Helitronic Power Production
AB-2510-13
Le Jasmin, Saint-Genix-les-Villages, France
CNC tool grinding machine - WALTER Helitronic Power Production
TECHNICAL CHARACTERISTICS:
CNC control: HMC 500
Software installed: Tool Studio 2.1 R4
Number of axes: 5
Height of centers: 190 [mm]
Stroke X: axis 490 [mm]
Resolution X axis: 0.00001 [mm]
Stroke Y axis: 320 [mm]
Resolution Y axis : 0.00001 [mm]
Stroke Z axis: 660 [mm]
Resolution Z axis: 0.00001 [mm]
Traversing feeds X, Y and Z axes: 15000 [mm/min]
A axis: 360 [°]
C axis: +/- 200 [°]
Resolution C axis: 0.0001 [°]
Max. workpiece lenght: end face grinding: 320 [mm]
Max. grinding length: 350 [mm]
Max. grinding diameter: 320 [mm]
Grinding spindle attachment: NCT
Grinding spindle diameter: 80 [mm]
Grinding wheel max. speed: 7000 [rpm]
Grinding spindle motor power: 24 [kW]
Max. diameter grinding wheel: 200 [mm]
Internal workpiece spindle nose: ISO 50
Workpiece spindle max. speed: 60 [rpm]
Total power required: 35 [kVA]
Weight: 4650 [Kg]
EQUIPMENT INCLUDED:
x1 TRANSOR 12290-800A filtration unit
x1 MTA oil chiller model TAE 015
x1 DSL oil mist extractor model AES-GAMMA 30
x1 RENISHAW part probe
x1 disc-type tool loader 40 positions
x1 SCHUNK gripper
x2 grinding wheel arbor adapters
x1 fire protection system - to be inspected by the buyer through a certified organization
x1 electrical schematic manual
x1 Service Instructions manual
LICENSED WALTER WINDOW MODE (WWM) PACKAGES:
- Package 001 (cylindrical mills)
- Package 002 (tapered mills)
- Package 003 (drills)
- Package 004 (step drills)
- Package 006 (woodwork tools)
- Package 013 (reamers)
- Package 015 (insert seats)
- Package 016 (warmup program)
- Package 027 (flexible program)
- Package 090 (loader package)
- Package 091 (acm)
- Package 098 (loader package)
- Package 099 (loader package)
- Package 100 (reference data m.)
- HELICONE (flute calc. conical.)
- HELIDRILL (flute calc. drills)
- HELIFLUTE (flute calc. cyl. mill.)
- MCS (machine control .)
- SCHEIBE (wheels menu)
- TS_ADVANCED (toolstudio (v1.0-v.)
- TS_STANDARD (toolstudio (v1.0-v.)
- TS_STEPTOOLS (toolstudio (v1.0-v.)
LICENSED TOOLSTUDIO OPTIONS:
- Tool Studio 2.0 server/machinecontrol
- Tool Studio 2.0 standard license
- Tool Studio 2.0 advanced license
- Tool Studio 1.9 upgrade options
- Tool Studio 2.0 upgrade options
- Option steptools
- Option profile light (contour roughing ...)
- Option calibration w/ touch probe
- Option drills
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
