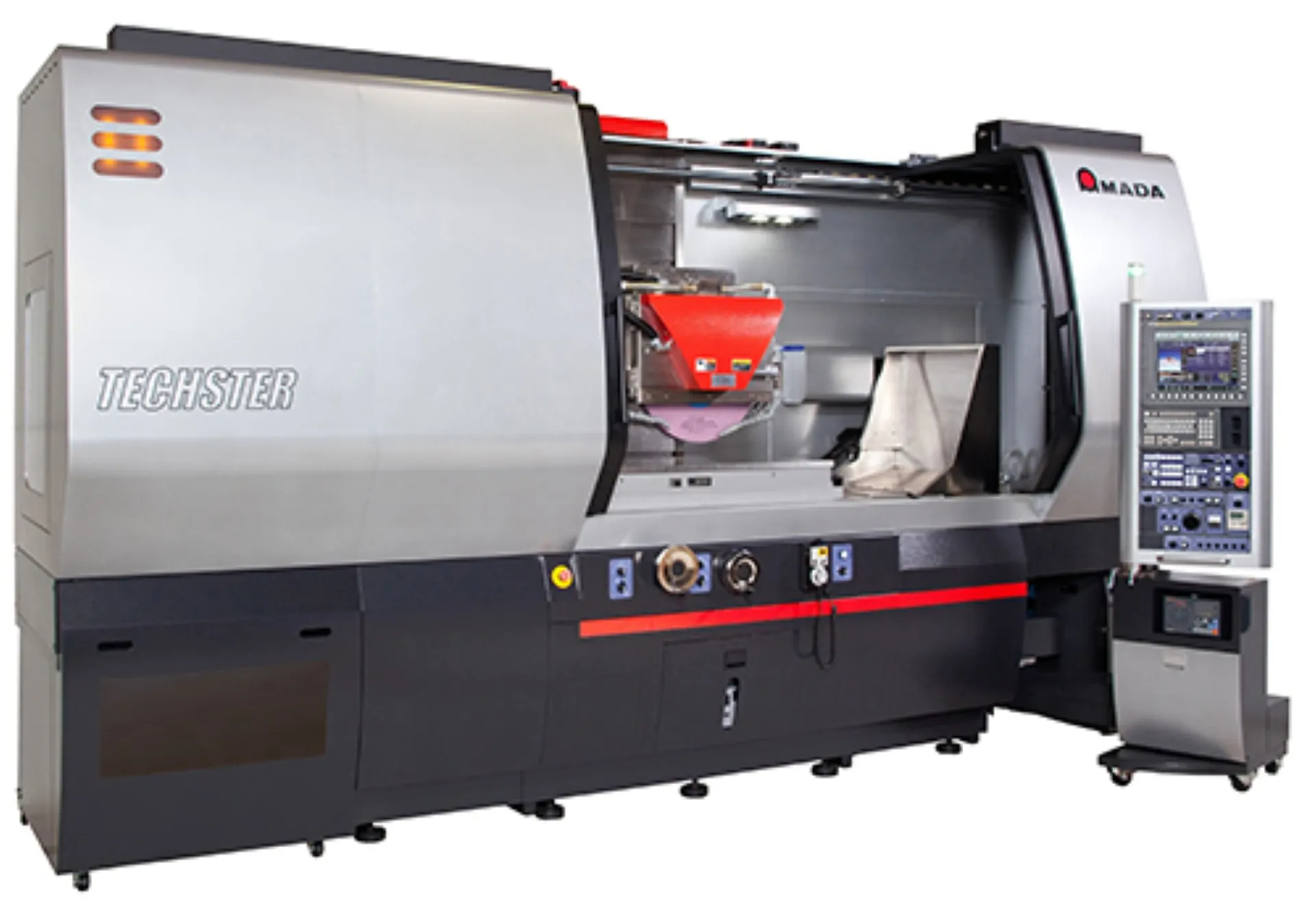

CNC Surface Grinder AMADA Techster 106
AB-2510-38
Le Jasmin, Saint-Genix-les-Villages, France
CNC Surface Grinder AMADA Techster 106
TECHNICAL CHARACTERISTICS:
CNC control : FANUC series 32i-B
Colour touch screen : 15 ["]
W axis travel (longitudinal axis) : 1300 [mm]
Min. Stroke speed W axis : 0.1 [mm/min]
Max. Stroke speed W axis : 40000 [mm/min]
Rapid traverse rate W axis : 40000 [mm/min]
X axis travel (transverse movement) : 660 [mm]
Min. Stroke speed X axis : 0.1 [mm/min]
Max. Stroke speed X axis : 5000 [mm/min]
Rapid traverse rate X axis : 5000 [mm/min]
Resolution X axis : 0.0001 [mm]
Stroke Y axis (vertical movement) : 750 [mm]
Min. Stroke speed Y axis : 0.1 [mm/min]
Max. Stroke speed Y axis : 500 [mm/min]
Rapid traverse rate Y axis : 2000 [mm/min]
Resolution Y axis : 0.0001 [mm]
Table length : 900 [mm]
Table width : 600 [mm]
Max. distance spindle nose / table : 750 [mm]
Max. load on table : 1500 [Kg]
Grinding wheel min. speed : 300 [rpm]
Grinding wheel max. speed : 2000 [rpm]
Grinding spindle motor power : 11 [kW]
Max. diameter grinding wheel : 405 [mm]
Max. grinding wheel width : 50 [mm]
Grinding wheel bore : 127 [mm]
Total power required : 29 [kVA]
Weight : 11000 [Kg]
EQUIPMENT / INCLUDED OPTIONS:
x1 electro-magnetic chuck 900 x 600 [mm]
x3 linear glass scales on the 3 linear axes
x1 workpiece probe
x1 paper tape filtration unit
x1 oil chiller DAIKIN AKZ149-C
x1 oil mist collector IFS type M 1600
x1 transformer
