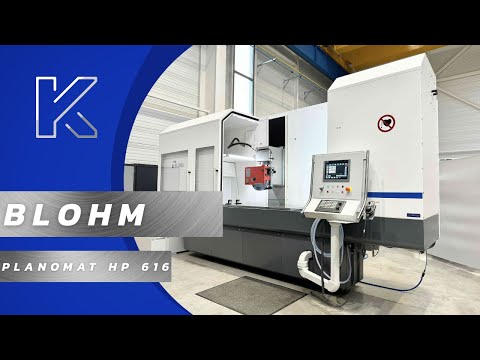

CNC Surface grinder BLOHM Planomat 616 HP

CNC surface grinder BLOHM Planomat 616 HP

TECHNICAL CHARACTERISTICS :

Year of manufacturing : 2015

CNC control : SIEMENS 840D SL

Maximum grinding lenght x width : 1600 x 600 [mm]

Stroke X axis (table movement) : 1700 [mm]

Min. Stroke speed X axis : 30 [mm/min]

Max. Stroke speed X axis : 30000 [mm/min]

Resolution X axis : 0.001 [mm]

Stroke Y axis (vertical movement) : 800 [mm]

Min. Stroke speed Y axis : 4 [mm/min]

Max. Stroke speed Y axis : 6000 [mm/min]

Resolution Y axis : 0.001 [mm]

Course axe Z (transverse movement) : 560 [mm]

Min. Stroke speed Z axis : 4 [mm/min]

Max. Stroke speed Z axis : 6000 [mm/min]

Resolution Z axis : 0.001 [mm]

Min. distance spindle nose / table : 150 [mm]

Max. distance spindle nose / table : 950 [mm]

Grinding spindle motor power : 15 [kW]

Max. diameter grinding wheel : 400 [mm]

Max. grinding wheel width : 30 [mm]

Grinding wheel bore : 127 [mm]

Dimensions of magnetic plate : 1600 x 600 [mm]

Machine dimensions : 5450 x 3560 x 2800 [mm]

Supply voltage : 400 [V]

Number of hours under power: 6840 [h]

Weight : 8000 [Kg]

EQUIPMENT INCLUDED:

x1 coolant tank + paper filtration system DGS type SBF150/650

x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3

x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13

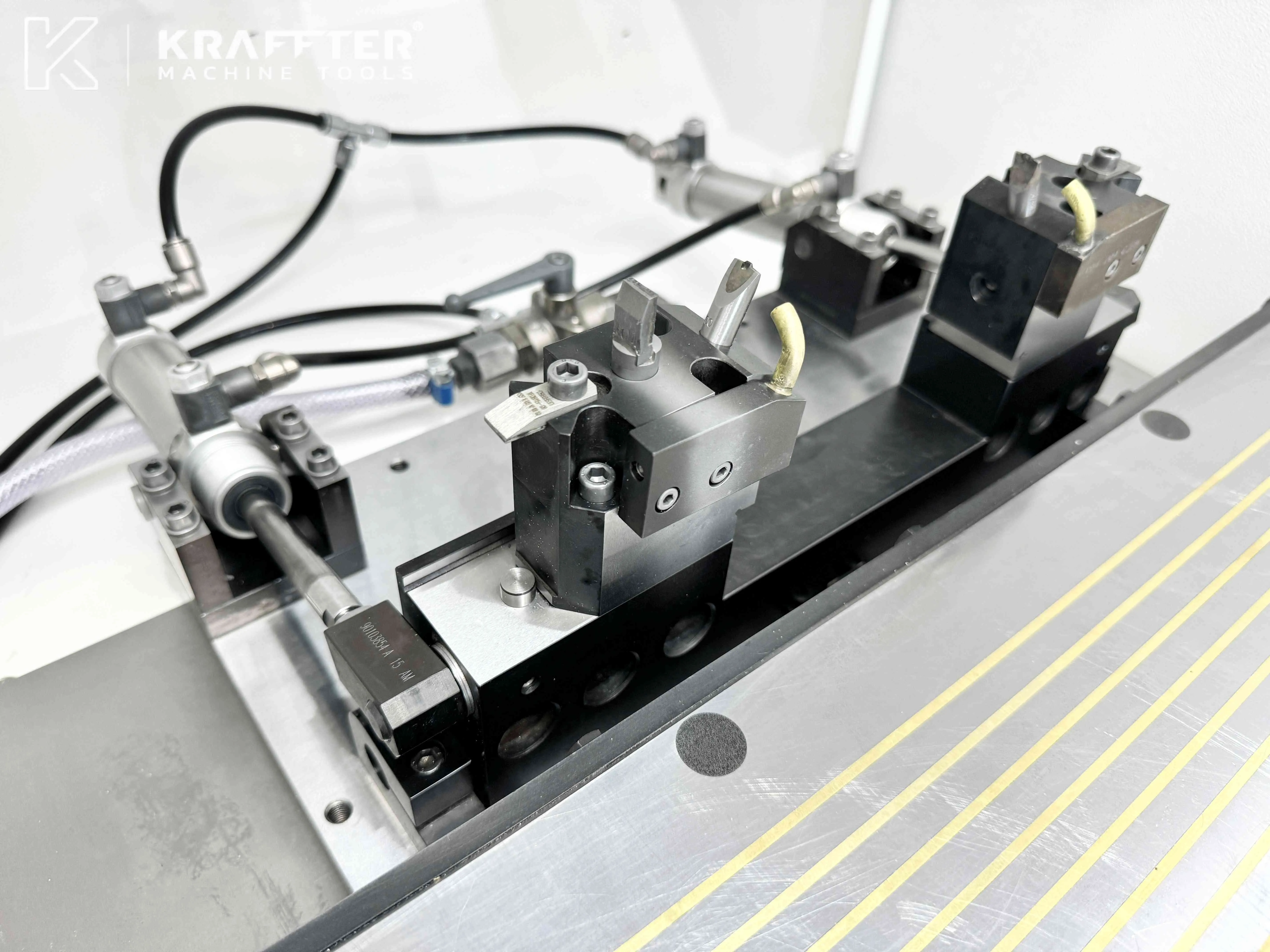

x1 lifting dressing device for peripheral, side and profile dressing

x5 grinding wheel flanges

x15 grinding wheels Ø400 [mm]

x1 wheel balancing bench

x1 set of manuals + CD

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
